Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

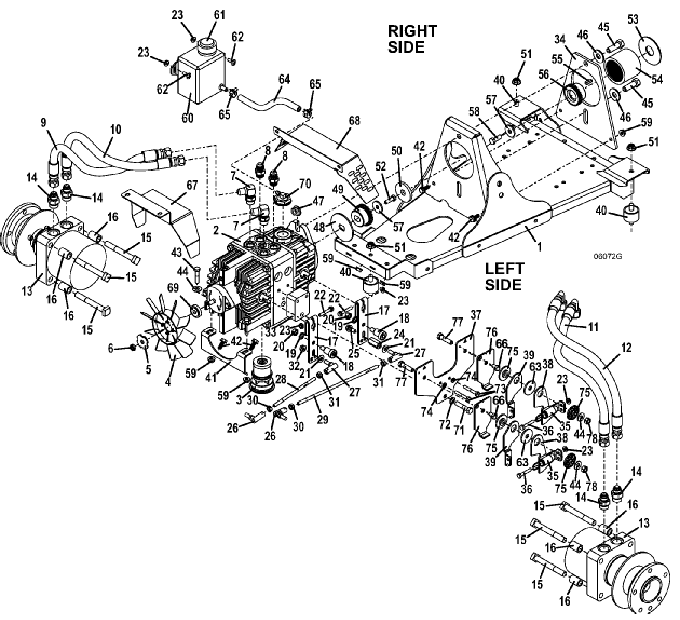

623t • Drive Assembly

2013

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600T Drive Train Mount

643945

2

Parker Tandem Hydro

391467

3

Tandem Transmission Filter

130505

4

H2 & T Hydro Fan

130431

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

O-Ring Adapter

360061

8

O-Ring Adapter

360059

9

Hose Assembly

424352

10

Hose Assembly

424354

11

Hose Assembly

424353

12

Hose Assembly

424346

13

620T Wheel Motor with Hub

603613

14

O-Ring Adapter

360063

15

Square Head Bolt

243622

16

Wheel Motor Spacer

902299

17

6/700T Control Arm

729661

18

Eccentric Roller Assembly

603734

19

External Star Washer

257410

20

Nut

254450

21

Flat Washer

257019

22

Whiz Hex Bolt

253182

23

Whiz Nut

253025

24

Neutral Return Spacer

783730

25

Hex Whiz Bolt

253186

26

Righthand Thread Ball Joint

265615

27

Leftthand Thread Ball Joint

265616

28

600T Steering Linkage Rod

780151

29

600T Steering Linkage Rod

780153

30

Nut

254441

31

Nut

254444

32

Whiz Nut

253038

33

Plastic Return Spacer

422041

34

Tandem Pump Mount Spacer

775123

35

Extension Spring

283823

36

Hex Bolt

243035

37

Neutral Return Mount

774299

38

Return Arm

729639

39

Neutral Return Arm

729398

40

Vibration Isolator

424079

41

Front Tandem Pump Mount

729529

42

Hex Whiz Flange Bolt

253192

43

Hex Bolt

243215

44

Washer

257030

45

Hex Bolt

243570

46

Washer

257060

47

Whiz Nut

253066

48

DD Washer

774175

49

Coupler Hub

388577

50

Coupling Stabilizer

424150

51

Whiz Nut

253043

52

Hex Bolt

243206

53

3 inch OD Washer

774176

54

Nylon Coupler Sleeve

388560

55

Square Key

281580

56

1" Bore .25 KW Coupler Hub

388578

57

Washer

774020

58

Hex Bolt

243330

59

Whiz Nut

253035

60

Oil Expansion Tank

421981

61

Vented Cap w/Gasket

421991

62

Phillips Whiz Truss Bolt

253179

63

Washer

774292

64

Hydro Expansion Hose

821709

65

Spring Hose Clamp

280261

66

Hex Bolt

243186

67

600T Fan Shroud

722969

68

600T Coupler Shield

722968

69

H2 Fan Hub

130430

70

T2 Expansion Tank Adapter

130510

71

Hex Bolt

243345

72

Lock Washer

257412

73

Hex Bolt

243038

74

Lock Washer

257392

75

Neutral Return Pivot Bearing

822304

76

Return Adjustment Plate

729660

77

Hex Bolt

243340

78

Lock Nut

253890
