Genuine OEM Grasshopper® Mower Parts Diagrams

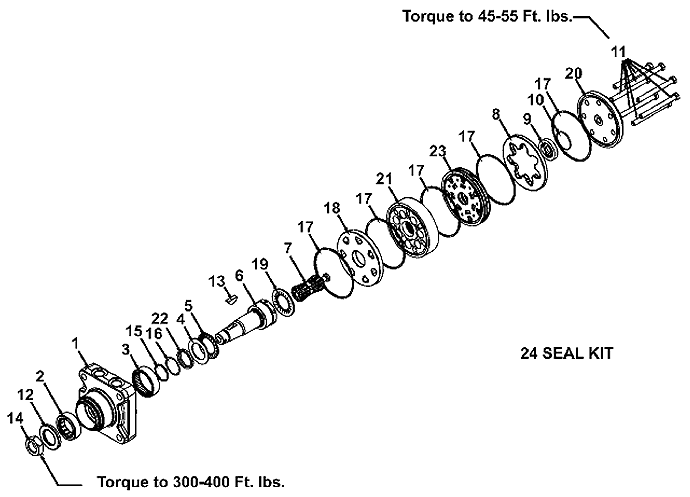

623T • Torque Motor Assembly version 1
serial number 121119999 and below
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Not Available |
000000 |
2 |
Outer Bearing |
130370 |
3 |
Inner Bearing |
130340 |
4 |
Thrust Washer |
130346 |
5 |
Outer Thrust Bearing |
130344 |
6 |
T Coupling Shaft |
130308 |
7 |
T Drive Link |
130314 |
8 |
Not Available |
000000 |
9 |
Not Available |
000000 |
10 |
Commutator Sleeve |
130312 |
11 |
Not Available |
000000 |
12 |
Dirt & Water Seal |
130315 |
13 |
Woodruff key |
281860 |
14 |
Nut |
254522 |
15 |
Washer Ring |
130306 |
16 |
Backup Washer |
130305 |
17 |
Seal Ring |
130386 |
18 |
Wear Plate |
130330 |
19 |
Inner Thrust Bearing |
130342 |
20 |
Not Available |
000000 |
21 |
T Rotor Set |
130378 |
22 |
T Inner Seal |
130338 |
23 |
Not Available |
000000 |
24 |
T6 Seal Kit |
130385 |
