Genuine OEM Grasshopper® Mower Parts Diagrams

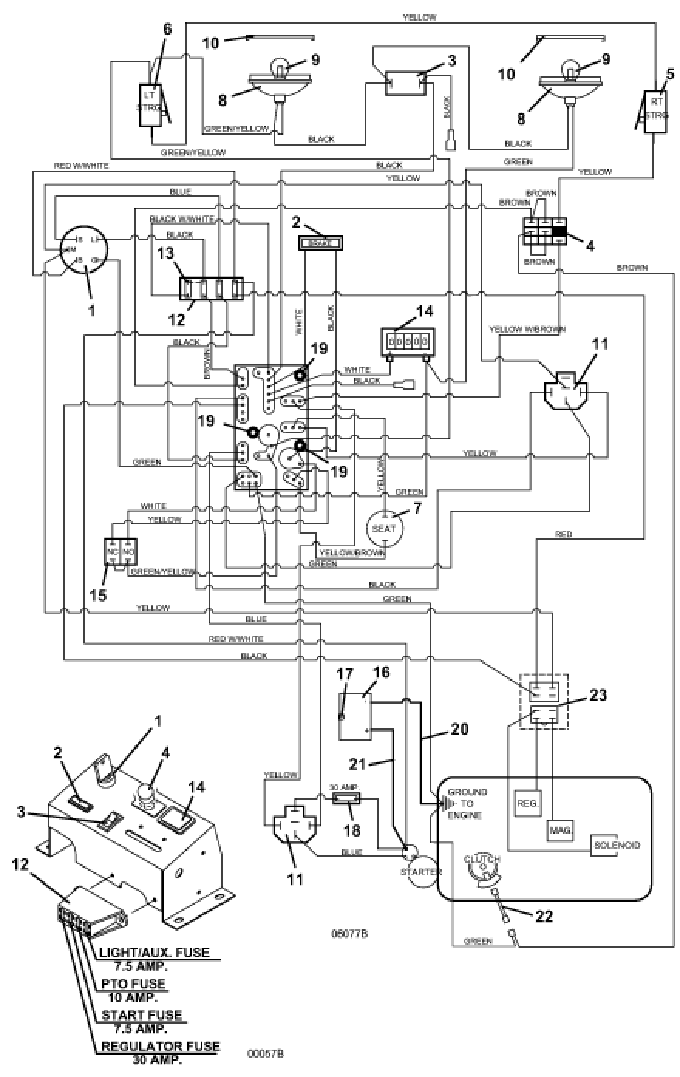

623t • Wiring & Lights
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Rocker Switch |
184179 |
4 |
Push/Pull Switch |
183925 |
5 |
Lever Switch |
183860 |
- |
Steering Switch Mount - right |
720160 |
6 |
Lever Switch |
183860 |
- |
Steering Switch Mount - left |
720161 |
7 |
Twist-in Seat Switch |
183871 |
8 |
Flood Worklamp |
182253 |
9 |
Light Bulb for Headlight |
182005 |
10 |
Snap Mount Worklamp Bezel |
182251 |
11 |
12V DC Relay with Mount |
184271 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
12 |
Fuse Block |
181722 |
- |
Fuse ID Decal |
162320 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Fuse Clip |
184472 |
13 |
30 amp Auto ATC Fuse |
181470 |
- |
7.5 amp Auto ATC Fuse |
181460 |
- |
10 amp Auto ATC Fuse |
181462 |
14 |
Snap In Hour Meter |
141551 |
15 |
Brake Interlock Switch |
183894 |
16 |
12 Volt Wet Battery |
180125 |
- |
12 Volt Dry Battery |
180126 |
- |
G2 AC Battery Box |
644099 |
- |
AC Battery Cover |
644162 |
17 |
Battery Clamp |
729001 |
18 |
Inline Auto Fuse Holder |
181735 |
- |
30 amp Auto ATC Fuse |
181470 |
19 |
PC Board Support Spacer |
423690 |
20 |
16" Black Battery Cable |
180276 |
21 |
16" Red Battery Cable |
180315 |
- |
Starter Terminal Boot |
425219 |
22 |
Pigtail Cable Assembly |
388840 |
23 |
4-Way Connector Mount |
184936 |
24 |
623T/620T Wiring Assembly |
605873 |
25 |
200/600T Console Decal |
161122 |
