Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

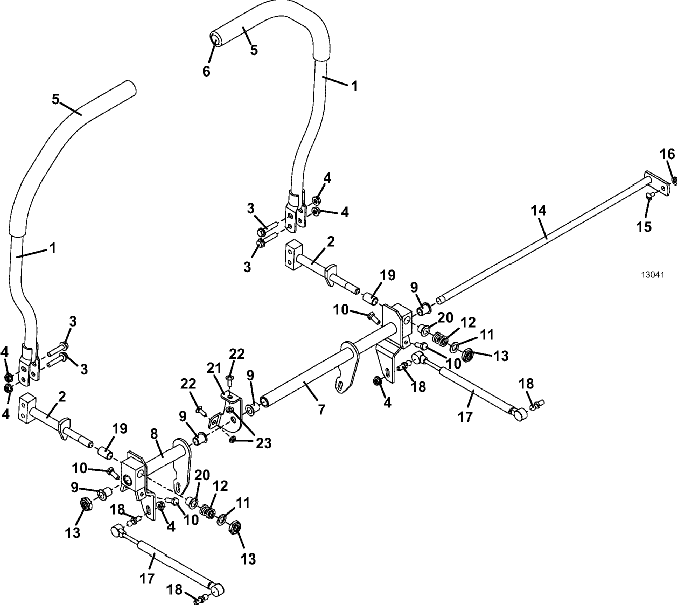

623t • Steering Assembly

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever Assembly - Wide STD

604777

2

Adjustable Steering Lever Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 ID Vinyl Cap

422095

7

Rt Pivot Assembly

604854

8

Lt Pivot Assembly

604855

9

Sleeve Bearing w/Flange

422559

10

Hex Bolt

243197

11

Washer

257063

12

Compression Spring

283324

13

Nylon Insert Nut

253470

14

Steering Pivot

644589

15

Truss Whiz Bolt

253176

16

Whiz Nut

253025

17

Reverse Damper with Ball Socket

285032

18

Ball Stud

265680

19

Sleeve Bearing

422557

20

Sleeve Bearing w/Flange

422556

21

Steering Rod Support

729701

22

Phillips Truss Whiz Bolt

253179

23

Whiz Nut

253025

Return to 623t Index Return to Top
