Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

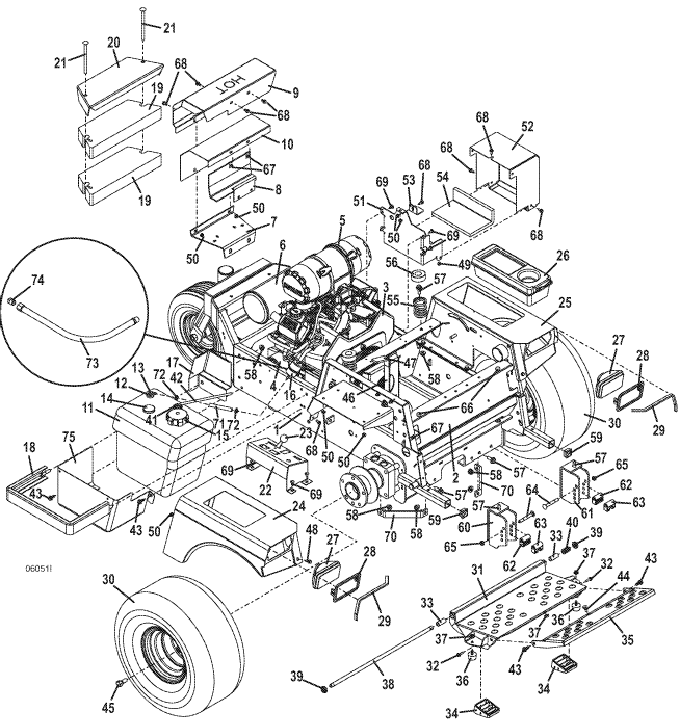

623t • Tractor Assembly

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

620T Lower Frame

643873

2

600T Upper Frame

643874

3

23hp Kohler Front Shaft Engine

100156

-

Kohler Engine Shim

900117

4

Kohler Oil Filter

100802

5

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

6

Kohler CH18 45 degree Muffler

101216

-

Kohler Exhaust Gasket

101041

7

Lower Muffler Bracket

729270

8

Shield Mount Bracket Assembly

605125

9

Muffler Shield

722391

10

Inner Panel Shield

722309

11

4x.25 FM Tank Assembly

605792

12

Fuel Tube Bushing

101875

13

Fuel Tube

363925

14

Intank Fuel Gauge

141142

-

Grommet

424275

15

Internal Sealed Tether Fuel Cap

100212

16

Kohler Fuel Filter

101001

17

600 Tank Shield

721502

18

4.3 Tank Mount

645826

19

34 lb. Counterweight

323933

20

34 lb. Weight Cover

729514

21

Carriage Bolt

247325

22

200 Console Panel with Decal

693115

23

Mechanical Choke

142216

24

600T Rt Fender with Decals

693196

25

600T Lt Fender with Decals

693197

26

Tool Box

422040

27

Flood Worklamp

182253

28

Snap Mount Worklamp Bezel

182251

29

Trim

822632

30

Wheel & Turf Tire 20 x 10 x 8

483922

-

Turf Tire 20 x 10 x 8

482472

-

Bar Tread Tire 21 x 11 x 8

482478

-

5 Bolt Wheel 8 x 7.75

483414

-

right Wheel & Bar Tread Tire 21 x 11 x 8

483926

-

left Wheel & Bar Tread Tire 21 x 11 x 8

483927

31

620T Adjustable Foot Platform Assembly

604348

32

Hex Bolt

243026

33

Nylon Bearing

422615

34

Footrest Isolator Block

424100

35

600 Estension Foot Platform

643305

36

Rubber Bumper

424052

37

Whiz Nut

253035

38

Footrest Pivot Rod

780656

39

Nylon Insert Nut

253470

40

Compression Spring

283312

41

2011 Fuel Tank Valve

100216

42

Fuel Vapor Hose

821757

43

Hex Flange Whiz Bolt

253192

44

Carriage Bolt

247130

45

Lug Bolt

248565

46

Throttle Assembly

603854

-

Control Cable Assembly

323643

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Lever Stop

722736

47

Handle Grip

422150

48

Hex Whiz Bolt

253175

49

Nylon Insert Nut

253440

50

Whiz Nut

253025

51

G2 AC Battery Box

644099

52

AC Battery Cover

644162

53

Battery Clamp

729001

54

Battery Tray Pad

427273

55

Compression Spring

283516

56

Seat Spring Cap

422127

57

Whiz Flange Bolt

253203

58

Whiz Nut

253043

59

1" ID Square Plastic Plug

422065

60

600 QD right Deck Mount

643894

61

600 QD left Deck Mount

643895

62

Deck Mount Bushing

282575

63

Floating Deck Mount Bushing

282576

64

Special Carriage Bolt

247280

65

Nylon Insert Nut

253460

66

Rubber Bumper

424015

67

Speed Nut

254431

68

Hex Whiz Bolt

253173

69

Truss Whiz Bolt

253176

70

Crossmember Strap

732824

71

Fuel Hose

821710

72

Hose Clamp

280260

73

Engine Oil Drain Hose Assembly

424474

74

Metal Pipe Plug

365515

75

4.3 Tank Shield

751350

76

623T Decal Set

605537
