Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

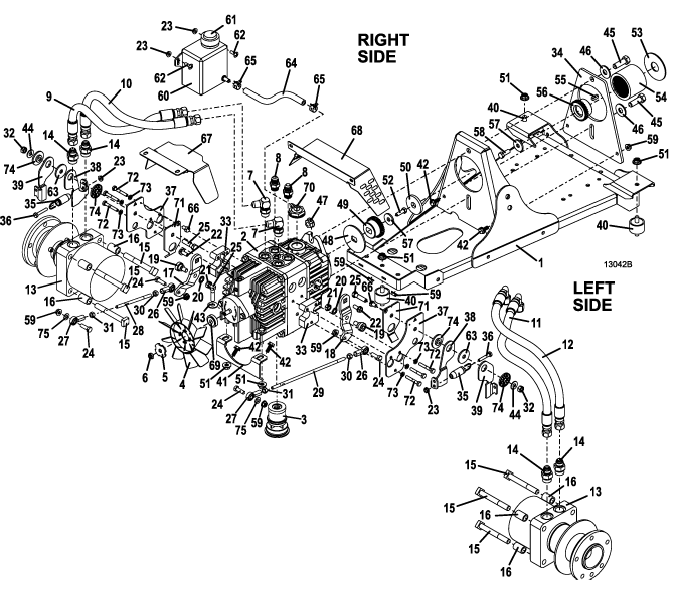

623t • Drive Assembly

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600T Drive Train Mount

643945

2

Tandem Hydro Pump

391468

3

Tandem Transmission Filter

130505

4

H2 & T Hydro Fan

130431

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

O-Ring Adapter

360061

8

O-Ring Adapter

360059

9

Hose Assembly

424352

10

Hose Assembly

424354

11

Hose Assembly

424353

12

Hose Assembly

424346

13

620T Wheel Motor with Hub

603613

14

O-Ring Adapter

360063

15

Square Head Bolt

243622

16

Wheel Motor Spacer

902299

17

Rt Neutral Return Arm

726162

18

Lt Neutral Return Arm

726163

19

Opposed Roller Assembly

603735

20

External Star Washer

257410

21

Nut

254450

22

Hex Bolt

271021

23

Whiz Nut

253025

24

Hex Bolt

243205

25

Hex Bolt

243340

26

Rod- Rt Female End

265650

27

Rod- Lt Female End

265651

28

Steering Linkage Rod

780180

29

Steering Linkage Rod

780181

30

Nut

254441

31

Nut

254444

32

Lock Nut

253890

33

Return Spacer

422049

34

Tandem Pump Mount Spacer

775123

35

Extension Spring

283823

36

Hex Bolt

243035

37

Neutral Return Mount

766037

38

Neutral Return Arm

766043

39

Neutral Return Arm

766044

40

Vibration Isolator

424079

41

Front Tandem Pump Mount

729529

42

Hex Whiz Flange Bolt

253192

43

Washer

257040

44

Washer

257030

45

Hex Bolt

243570

46

Washer

257060

47

Whiz Nut

253066

48

DD Washer

774175

49

Coupler Hub

388577

50

Coupling Stabilizer

424150

51

Whiz Nut

253043

52

Hex Bolt

243206

53

3 inch OD Washer

774176

54

Nylon Coupler Sleeve

388560

55

Square Key

281580

56

1" Bore .25 KW Coupler Hub

388578

57

Washer

774020

58

Hex Bolt

243330

59

Whiz Nut

253035

60

Oil Expansion Tank

421981

61

Vented Cap w/Gasket

421991

62

Phillips Whiz Truss Bolt

253179

63

Washer

774292

64

Hydro Expansion Hose

821709

65

Spring Hose Clamp

280261

66

Hex Bolt

243186

67

600T Fan Shroud

722969

68

600T Coupler Shield

722968

69

H2 Fan Hub

130430

70

T2 Expansion Tank Adapter

130510

71

Adjustment Plate

776038

72

Hex Bolt

243038

73

Lock Washer

257392

74

Neutral Return Pivot Bearing

822304

75

Washer

257032
