Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

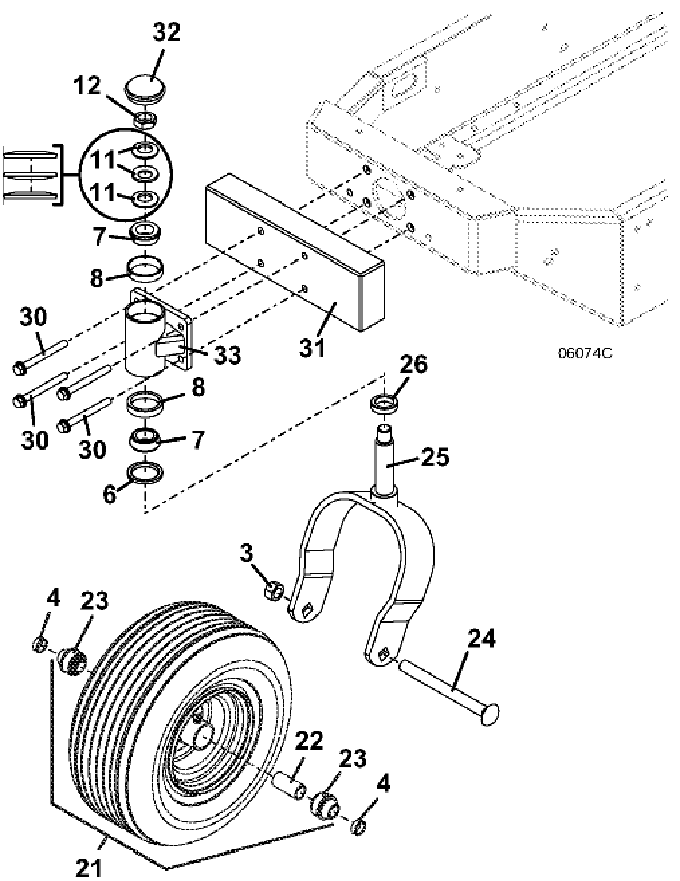

623t • Tail Wheel Options 1

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902422

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

11

Spring Washer

257320

12

Nylon-Top Jam Lock Nut

254505

21

Rear Wheel Assembly w/Bearings

603975

-

Ball Bearing

120048

-

Axle Spacer

423750

22

Axle Spacer

423750

23

Ball Bearing

120048

24

Carriage Bolt

247726

25

Tail Wheel Fork Tapered Bearing

645221

26

Spacer

282615

30

Whiz Bolt

253212

31

600 Series Counterweight

783810

32

Domed Dust Cap

481434

33

RR Fork Pivot Housing Assembly

604596
