Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

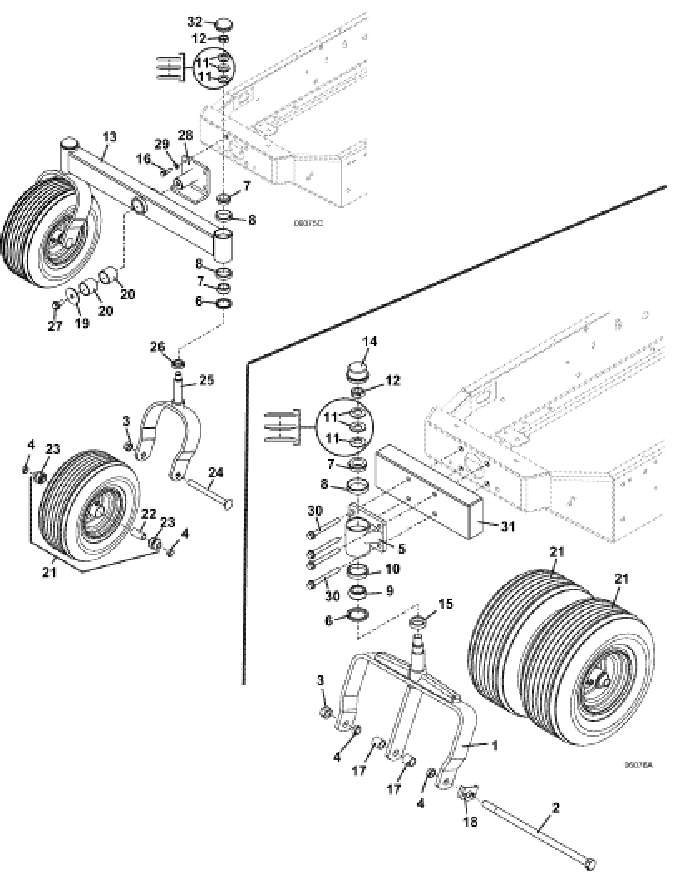

623t • Tail Wheel Options 2

2016

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902422

5

Dual Fork Pivot Housing Assembly

604595

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

Spring Washer

257320

12

Nylon-Top Jam Lock Nut

254505

13

Dual Wheel Beam

824510

14

Dust Cap

481432

15

Spacer

830420

16

GR 8 Hex Bolt

243334

17

Axle Spacer

902425

18

Fork Bolt Lock

723008

19

Washer

257061

20

Reamed Oilite Bearing

833275

21

Rear Wheel Assembly w/Bearing

603975

-

Ball Bearing

120048

-

Axle Spacer

423750

22

Axle Spacer

423750

23

Ball Bearing

120048

24

Carriage Bolt

247726

25

Tail Wheel Fork Tapered Bearing

645221

26

Spacer

282615

27

Whiz Bolt

253243

28

Rear Axle Pivot Assembly

604597

29

Lock Washer

257412

30

Whiz Bolt

253212

31

600 Series Counterweight

783810

32

Domed Dust Cap

481434

Return to 623t Index Return to Top
