Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

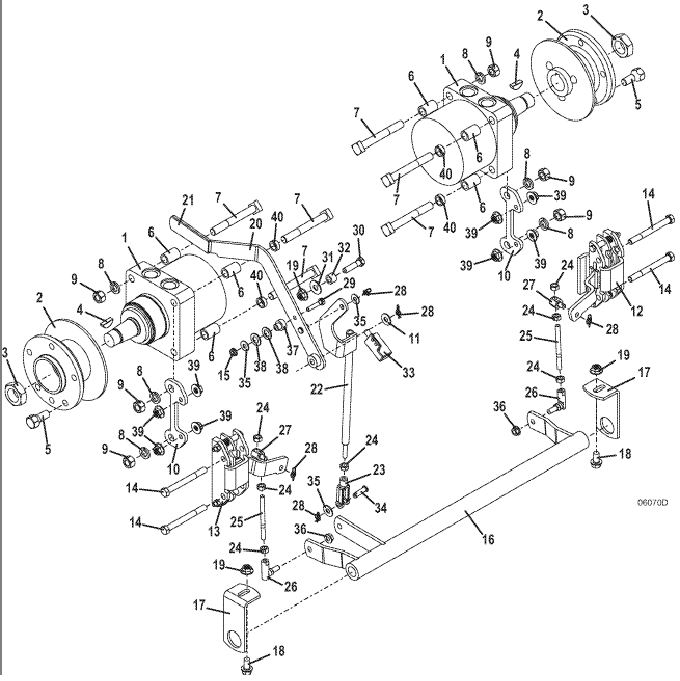

623t • Wheel Motor & Brake Assembly

2016

wheel motor and brake assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub for 620T Model

603613

2

Hub & Rotor Assembly

604435

3

Nut

254522

4

Woodruff Key

281860

5

Lug Bolt

248565

6

Wheel Motor Spacer

902299

7

Square Head Bolt

243622

8

Lock Washer

257432

9

Nut

254470

10

600T Brake Mount

777505

11

Washer

257030

12

600 Rt Brake Assembly

481142

-

Brake Pad Kit

481160

13

600 Lt Brake Assembly

481143

-

Brake Pad Kit

481160

14

Hex Bolt

243382

15

Whiz Nut

253025

16

600T Brake Pivot Tube

644594

17

Brake Pivot Mount

732617

18

Whiz Bolt

253200

19

Whiz Nut

253043

20

700/900 Brake Lever

644035

21

Handle Grip

422150

22

Brake Linkage Arm

644057

23

Clevis Yoke

265537

24

Nut

254441

25

Brake Linkage Rod

780158

26

Ball Joint

265615

27

.312 Brake Linkage Pin

880926

28

Cotter Ring

260606

29

Hex Bolt

243030

30

Hex Bolt

243340

31

Washer

257040

32

Spacer

902280

33

Interlock Brake Switch

183894

34

Clevis Pin

261284

35

Washer

257020

36

Whiz Nut

253038

37

Brake Lever Spacer

881130

38

Washer

257063

39

Flange Nut

253044

40

Integrated Spacer

902293
