Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

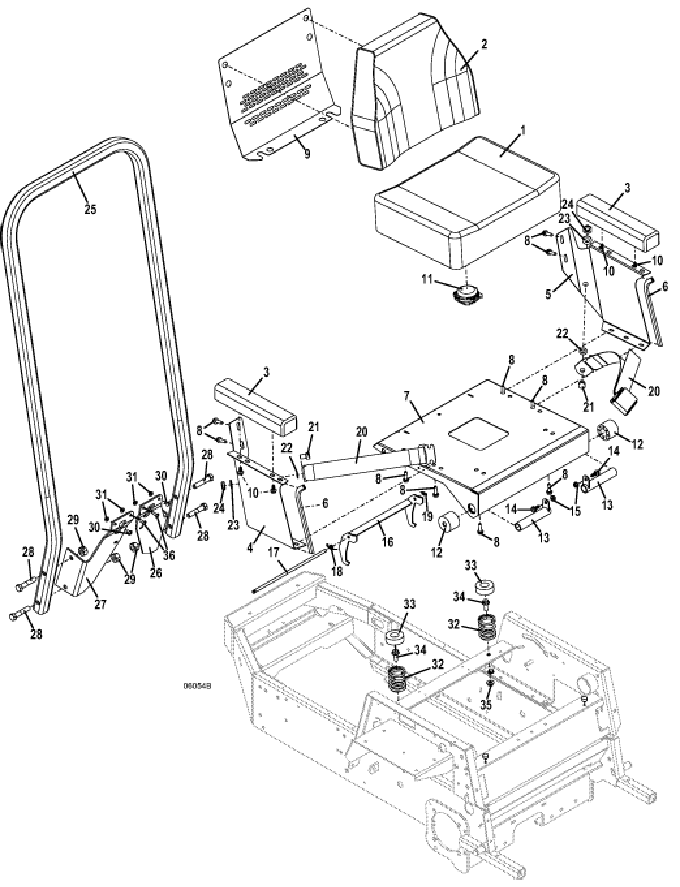

623t • OPS & Seat Assembly

2018

OPS and seat assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Combo Seat Cushion

321529

-

Cordura Seat Cushion

321518

2

Combo Back Cushion w/Logo

321530

-

Cordura Back Cushion

321519

3

Cordura Contoured Armrest

321523

4

Raised Backrest Rt Seat Side

723433

5

Raised Backrest Lt Seat Side

723434

6

Seat Edge Trim

822630

7

600 Adjustable Seat Mount

643890

8

Hex Flange Whiz Bolt

253193

9

Raised Backrest Seat Rein

722884

10

Hex Flange Whiz Bolt

253191

11

Twist-In Seat Switch

183871

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

600 Seat Dual Latch

754234

17

Seat Latch Pivot Pin

730230

18

Torsion Spring

284408

19

Cotter Ring

260606

20

Non Retracting Seat Belt

324200

21

Hex Bolt

243551

22

Washer

257063

23

Washer

257062

24

Nylon Insert Nut

253470

25

600 OPS Tube

324107

26

left 600 OPS Gusset

729358

27

right 600 OPS Gusset

729359

28

Hex Bolt

243591

29

Lock Nut

253930

30

Truss Whiz Bolt

253176

31

Whiz Nut

253025

32

Compression Spring

283516

33

Seat Spring Cap

422127

34

Whiz Flange Bolt

253203

35

Whiz Nut

253043

36

Truss Whiz Bolt

253177
