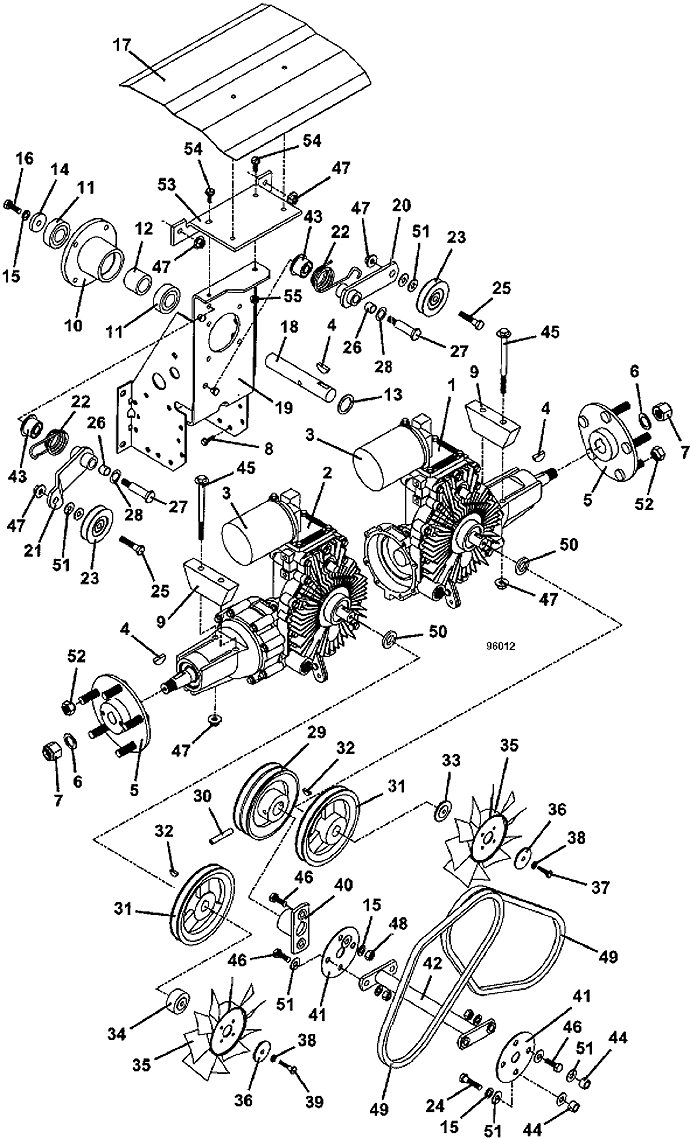

718 • Drive Assembly

1997

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Right Transaxle with Brake

391207

2

Left Transaxle with Brake

391206

3

Transaxle Oil Filter

100850

4

Woodruff Key

281845

5

Tapered 5 Bolt Hub Assembly

603429

-

Wheel Stud Bolt

248570

6

14 GA Bushing Washer

257091

7

Nut with Nylon Insert

253501

8

Hex Flange Whiz Bolt

253174

9

Tapered Transaxle Spacer

901745

10

Vac Fan Spindle Housing

320522

11

25mm 2 Reg Seal Ball Bearing

110081

12

Drive Bearing Spacer

903650

13

Washer

257106

14

Washer

883801

15

Lock Washer

257412

16

Hex Bolt

243331

17

'96 900 Drive Shield with Decal

693771

18

Shaft/Key Assembly

603764

19

Center Drive Mount

643112

20

Lower Idler Arm Assembly with Spring

603066

21

Upper Idler Arm Assembly with Spring

603065

22

Torsion Spring

284425

23

Idler

393312

24

Hex Bolt

243340

25

Hex Bolt

243345

26

Nylon Bearing

422558

27

Shoulder Bolt

259745

28

Steel Shim

282350

29

Sheave

414554

30

Roll Pin

261061

31

Sheave

415559

32

Woodruff Key

281829

33

Fan Spacer

423723

34

Fan Spacer

423724

35

7" counterclockwise Nylon Fan

320856

36

Flat Washer

774023

37

Hex Bolt

243030

38

Lock Washer

257392

39

Hex Bolt

243040

40

Flex Coupling Hub

824550

41

Flex Coupling Disc

821530

42

Coupling Connector

643204

43

Idler Arm Double Bearing

422750

44

Spacer

902280

45

Flange Bolt

253215

46

Hex Bolt

243330

47

Whiz Nut

253043

48

Nut

254450

49

Belt

381904

50

Washer

775002

51

Washer

257030

52

Lug Nut

254472

53

Dampeners Mount Plate

726139

54

Hex Flange Whiz Bolt

253192

55

Whiz Nut

253035
