Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

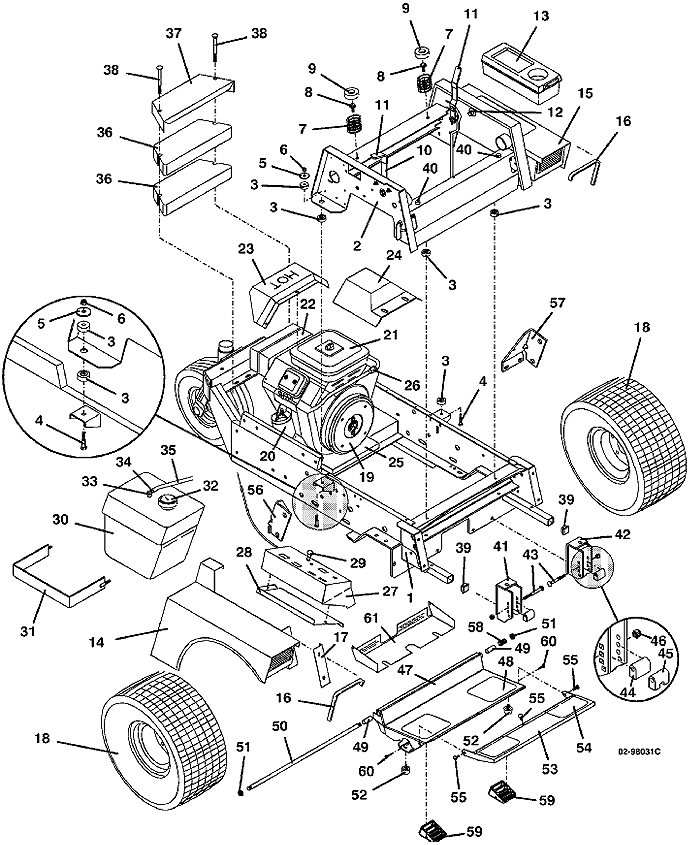

718 • Tractor Assembly

2002

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

718/718K lower Tractor Frame

644229

2

97 upper Frame for Air Cooled Tractor

643870

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Whiz Flange Bolt

253203

9

Seat Spring Cap

422127

10

718 Throttle Assembly

603851

-

Control Cable Assembly

323642

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

13

Tool Box

422040

14

700/900 right Fender with Safety Decal

693210

-

718 right Trim Decal

163206

15

700/900 left Fender with Safety Decal

693211

-

718 left Trim Decal

163207

16

700/900 Fender Edge Trim

822635

17

right Fender Cover Panel

722062

18

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

20 x 10 x 8 Turf Tire

482472

-

21 x 11 x 8 Bar Tread Tire

482478

-

8 x 6 5-Bolt Wheel

483410

-

8 x 9.125 5-Bolt Wheel

483415

-

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

19

18hp Briggs & Stratton Engine

100143

20

Briggs Oil Filter

100803

21

Briggs Air Filter

100920

-

Briggs & Stratton Air Filter Pre-Cleaner

100921

22

Muffler & Support Assembly

603592

-

Vanguard Heat Shield

729196

23

600 Muffler Shield

722266

24

718 Intake Shield with Decal

693780

25

700 Spacer

901701

26

Briggs In-Line Fuel Filter

366560

27

96 Air Cooled Console with Decal

693100

28

96 Console Fill Panel

721152

29

Mechanical Choke

142228

30

Fuel Tank Assembly with Draw Tube

603813

31

Fuel Tank Mounting Bracket

643144

32

Fuel Cap with Level Indicator

141125

33

Fuel Draw Tube

101819

34

Spring Hose Clamp

280260

35

Hose

821749

36

34 lb Counterweight

323933

37

34 lb Weight Cover

729514

38

Carriage Bolt

247325

39

1" ID Square Plastic Plug

422065

40

Rubber Bumper

424015

41

right 700/900 QD Deck Mount

643092

42

left 700/900 QD Deck Mount

643093

43

Special Carriage Bolt

247280

44

Deck Mount Bushing

282575

45

Floating Deck Mount Bushing

282576

46

Nut with Nylon Insert

253460

47

700/900 Adjustable Foot Platform Assembly

604346

48

Foot Rest Tread

420905

49

Nylon Bearing

422615

50

700 Foot Platform Pivot Rod

780673

51

Nut with Nylon Insert

253470

52

Rubber Bumper

424052

53

Model 700 Foot Platform Extension

603301

54

Foot Rest Extension Tread

420904

55

Carriage Bolt

247130

56

right ROPS Gusset

726131

57

left ROPS Gusset

726132

58

Compression Spring

283312

59

Footrest Isolator Block

424100

60

Hex Bolt

243026

61

Hydro Fan Screen

721243

62

Decal Set for 718 with Side Console

604293
