718 • Wiring & Lights

2003

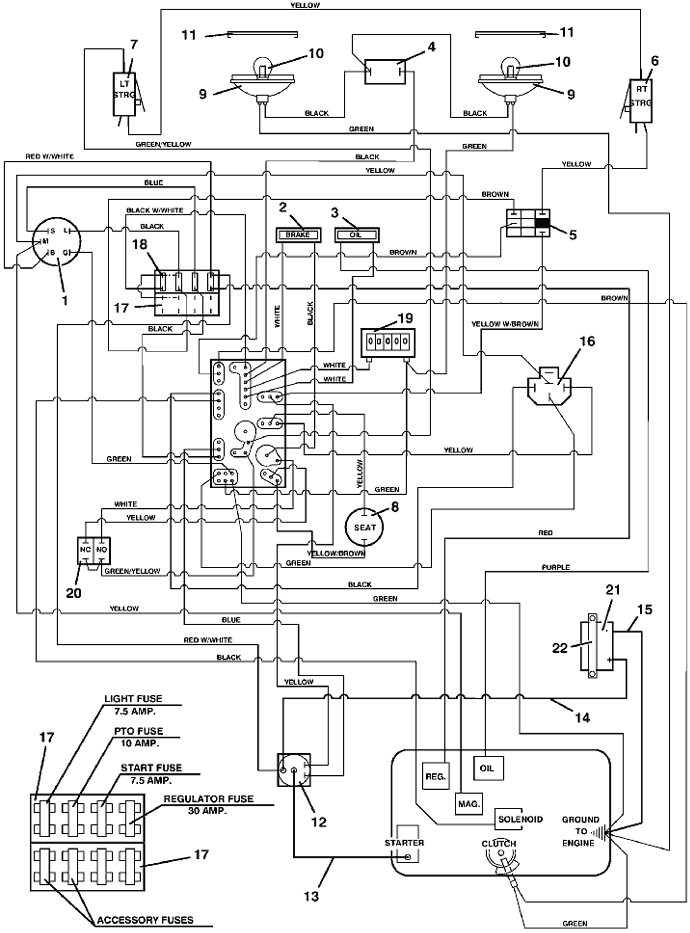

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Key Switch

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Indicator Light

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

6

Lever Switch

183860

-

right Steering Switch Mount

720160

7

Lever Switch

183860

-

left Steering Switch Mount

720161

8

Seat Switch

183870

9

Flood Worklamp

182253

10

Worklamp Light Bulb

182005

11

Snap Mount Worklamp Bezel

182251

12

4 Post Solenoid Relay Switch

184251

13

11 inch Red Battery Cable

180309

14

30 inch Red Battery Cable

180330

-

Battery Boot

425220

15

20 inch Black Battery Cable

180280

16

12V DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

18

ATC 30a Auto Fuse

181470

-

ATC 7.50a Auto Fuse

181460

-

ATC 10a Auto Fuse

181462

19

Snap-In Hour Meter

141551

20

Brake Interlock Switch

183894

21

12v Wet Battery

180125

22

Battery Hold Down Strap

604785

23

718 97 Wiring Assembly

604965

24

Console Decal for Air Cooled

161130

return to 718 index return to top of page
