Genuine OEM Grasshopper® Mower Parts Diagrams

718D • Wiring & Lights - serial number 291827 & later

1989

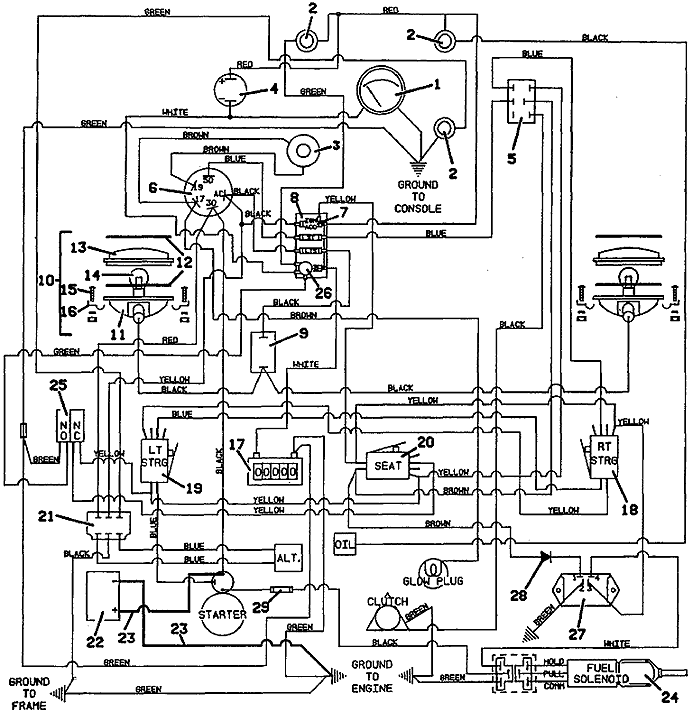

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Temperature Gauge

141152

2

Indicator Light

182310

3

Kubota Glow Indicator Light

182320

4

Buzzer & Mount Assembly

603190

5

PTO Switch & Cover Assembly

604796

6

Kubota Sealed Key Switch

183827

7

8 amp Fuse

181548

-

6 amp Fuse

181540

8

721 Mounted Fuse Block

603133

9

Light Toggle Switch

183950

10

Worklamp Assembly

182265

11

Rectangular Lamp Housing

182350

12

Lamp Assembly Gasket

420550

13

Rectangular Lamp Lens

182400

14

Worklamp Light Bulb

182000

15

Machine Screw

250258

16

Conduit Clip

180635

17

Snap-In Hour Meter

141551

-

Hour Meter Mounting Bracket

722028

18

Safety Lever Switch

183865

-

right Switch Mount

722020

19

Safety Lever Switch

183865

-

left Switch Mount

722021

20

Safety Lever Switch

183865

-

Machine Screw

250318

-

Clevis Pin

261328

-

Compression Spring

283322

-

Seat Safety Switch & Mount Assembly

603790

-

Seat Switch Mount

724100

21

12v Voltage Regulator

185530

22

12 Volt Side Post Wet Battery

180130

-

Battery Box

643135

-

Battery Box Cover

643241

-

Battery Clamp

720604

23

11" Red Battery Cable

180310

-

16" Red Battery Cable

180316

-

Starter Terminal Boot

425219

24

Fuel Solenoid Assembly

603350

25

Brake Interlock Switch

183894

26

12 volt Flasher

182440

27

Interlock Switch Module

184220

28

Brown Wire Assembly with Diode

705015

29

25 amp Fuse

181585

27

718D Wiring Group with Solenoid Module

603889

return to 718D index return to top of page
