Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

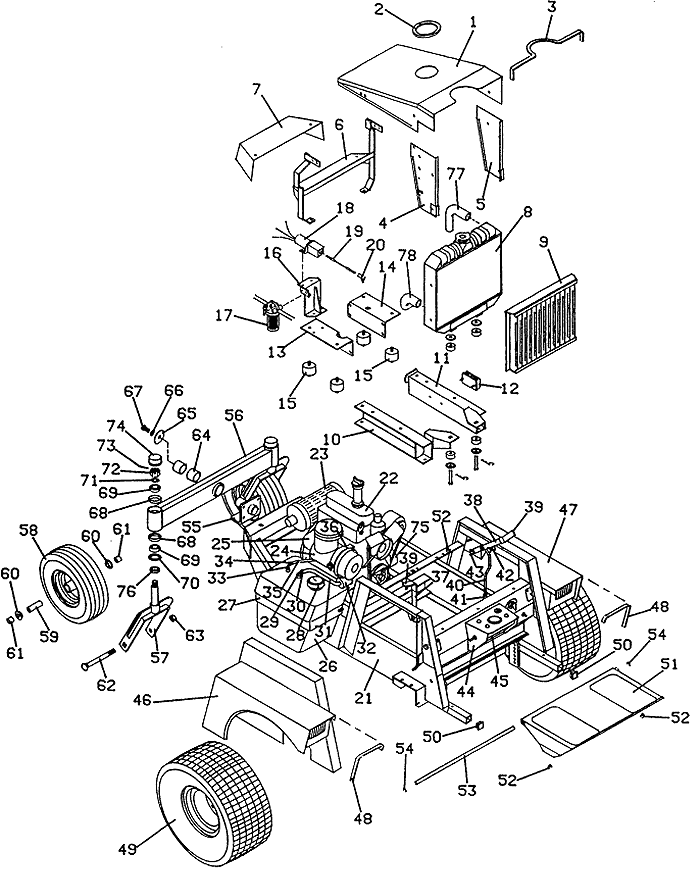

718D • Tractor Assembly

1991

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hood Panel

643409

2

Hood Panel Hole Trim

822633

3

Hood Panel / Console Hole Trim

822650

4

right Grille Support

643799

5

left Grille Support

643800

6

rear Hood Support

643797

7

Clutch Shield

643766

8

Kubota Radiator

101605

9

Grille

643401

10

Lower right Engine Mount

643604

11

Lower left Engine Mount

643605

12

12v Voltage Regulator

185530

13

Upper right Engine Mount

643292

14

Upper left Engine Mount

643291

15

Vibration Isolator

424078

16

Fuel Solenoid/Filter Mount

643591

17

Kubota Fuel Filter

101000

18

Fuel Solenoid Assembly

603350

19

Fuel Solenoid Cable Assembly

603209

20

Ball Joint

265610

21

718D/721 Tractor Frame

643392

22

Kubota Diesel Engine

100175

23

Muffler & Gasket Assembly

603590

24

Kubota Air Filter

100940

25

Formed Air Intake Hose

424515

26

Diesel Fuel Tank Assembly

603812

27

Fuel Tank Mounting Bracket

643144

28

Cap with Fuel Level

141125

29

Fuel Draw Tube

101818

30

Screw-type Hose Clamp

280270

31

Fuel Line Hose

821713

32

Kubota Fuel Pre-Filter

101005

33

Fuel Draw Tube

101817

34

Spring Hose Clamp

280257

35

Fuel Line Return Hose

821740

36

Fuel Shut-Off Torsion Spring

284422

37

718D Throttle Assembly

603850

-

Throttle Lever Stop

722009

38

700 Brake Lever Assembly

603557

39

Handle Grip

422150

40

Adjustable Disc Brake Rod

730356

41

Clevis Yoke

265537

42

Shoulder Bolt

259741

43

Cotter Pin

260624

44

718D Console

623242

45

Console Front Panel

721076

46

700 Series right Fender

643352

-

718D right Trim Decal

163212

47

700 Series left Fender

643353

-

718D left Trim Decal

163213

48

700/900 Fender Edge Trim

822635

49

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

20 x 10 x 8 Turf Tire

482471

-

21 x 11 x 8 Bar Tread Tire

482478

-

5-Bolt 8 x 6 Wheel

483410

-

5-Bolt 8 x 9.125 Wheel

483415

-

21 x 11 x 8 right Wheel & Bar Tread Tire

483930

-

21 x 11 x 8 left Wheel & Bar Tread Tire

483931

50

1 inch ID Square Plastic Plug

422065

51

Foot Rest

603345

52

Rubber Bumper

424015

53

700 Foot Platform Pivot Rod

780658

54

External Retainer

263500

55

rear Axle Pivot Assembly

604597

56

Dual Wheel Beam

824510

57

Rear Fork & Lock Nut Assembly

604364

58

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 x 5.00 x 6 Tubeless Ribbed Tire

482350

-

6 x 3.25 Tan Wheel with Bearing & Spacer

483301

59

Rear Wheel Bearing Spacer

902475

60

Ball Bearing

120050

61

Axle Spacer

902425

62

Carriage Bolt

247725

63

Lock Nut

253970

64

Reamed Oilite Bearing

833275

65

Washer

257061

66

Lock Washer

257432

67

Hex Bolt

243560

68

Bearing Cup

123522

69

Tapered Bearing

122522

70

Seal

125855

71

14 GA Bushing Washer

257091

72

Nut

254502

73

Cotter Pin

260670

74

Dust Cap

481432

75

Kubota Oil Filter

100800

76

Spacer

282615

77

Upper Radiator Hose

101052

78

Lower Radiator Hose

101053

79

718D Decal Set

603270

return to 718D index return to top of page
