Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

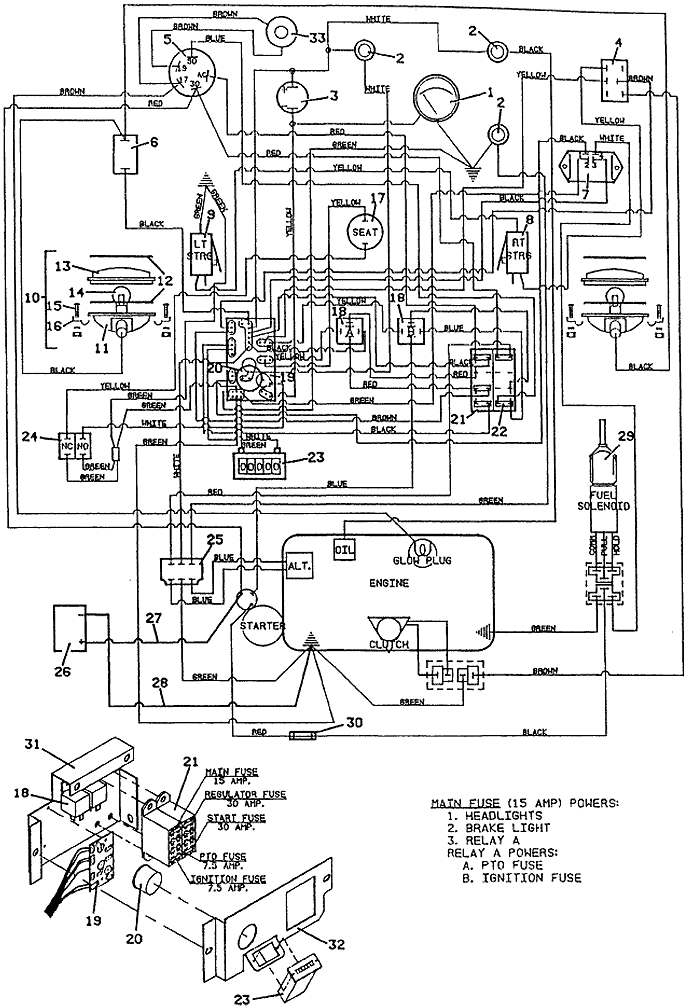

718D • Wiring & Lights

1991

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Temperature Gauge

141152

2

Indicator Light

182310

3

Buzzer & Mount Assembly

603190

4

PTO Switch & Cover Assembly

604796

5

Kubota Sealed Key Switch

183827

6

Light Toggle Switch

183950

7

Interlock Switch Module

184220

8

Lever Switch

183860

-

right Steering Switch Mount

720160

9

Lever Switch

183860

-

left Steering Switch Mount

720161

10

Worklamp Assembly

182265

11

Rectangular Lamp Housing

182350

12

Lamp Assembly Gasket

420550

13

Rectangular Lamp Lens

182400

14

Worklamp Light Bulb

182000

15

Machine Screw

250258

16

Conduit Clip

180635

17

Seat Switch

183870

18

12v DC Relay

184272

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5 Way Female Connector

184926

19

718D Wiring Assembly

603864

20

12 volt Flasher

182440

21

Fuse Block

181722

-

1 Wire Clip

184458

-

2 Wire Clip

184460

-

Double Clip

184472

22

30 amp ATC Auto Fuse

181470

-

15 amp ATC Auto Fuse

181465

-

7.5 amp ATC Auto Fuse

181460

23

Snap-In Hour Meter

141551

24

Brake Interlock Switch

183894

25

12v Voltage Regulator

185530

26

12 Volt Side Post Wet Battery

180130

-

Battery Box

643135

-

Battery Box Cover

643241

-

Battery Clamp

720604

27

11" Red Battery Cable

180310

-

Starter Terminal Boot

425219

28

24" Red Battery Cable

180322

29

Fuel Solenoid Assembly

603350

30

25 amp Fuse

181585

31

Fuse Block Mount

722204

32

Fuse Block Cover

722176

33

Kubota Glow Indicator Light

182320

34

718D Wiring Assembly

603864
