721 • Wiring & Lights

1992

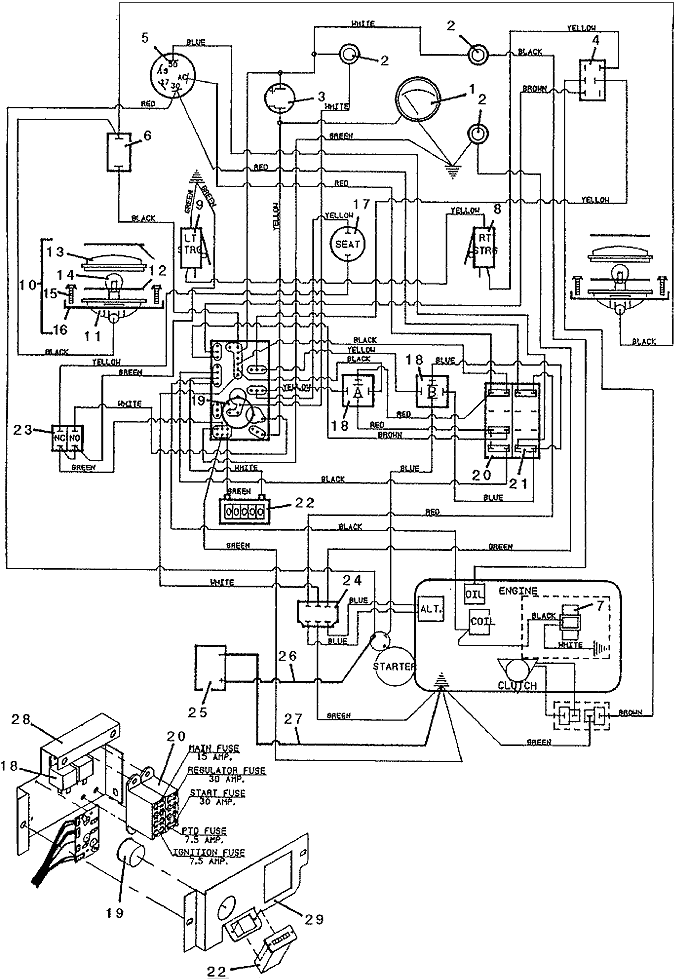

Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Temperature Gauge

141152

2

Indicator Light

182310

3

Buzzer & Mount Assembly

603190

4

PTO Switch & Cover Assembly

604796

5

Kubota Sealed Key Switch

183827

6

Light Toggle Switch

183950

7

Electric Fuel Pump

101510

8

Lever Switch

183860

-

right Steering Switch Mount

720160

9

Lever Switch

183860

-

left Steering Switch Mount

720161

10

Worklamp Assembly

603400

11

Rectangular Lamp Housing

182350

12

Lamp Assembly Gasket

420550

13

Rectangular Lamp Lens

182400

14

Worklamp Light Bulb

182000

15

#10 Screw

252057

16

Worklight Clamp

720163

17

Seat Switch

183870

18

12v DC Relay

184272

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5 Way Female Connector

184926

19

12 volt Flasher

182440

20

Fuse Block

181722

-

1 Wire Clip

184458

-

2 Wire Clip

184460

-

Double Clip

184472

21

30 amp ATC Auto Fuse

181470

-

15 amp ATC Auto Fuse

181465

-

7.5 amp ATC Auto Fuse

181460

22

Snap-In Hour Meter

141551

23

Brake Interlock Switch

183894

24

12v Voltage Regulator

185530

25

12 Volt Side Post Wet Battery

180130

-

Battery Box

643135

-

Battery Box Cover

643241

-

Battery Clamp

720604

26

11" Red Battery Cable

180310

-

Starter Terminal Boot

425219

27

16" Black Battery Cable

180276

28

Fuse Block Mount

722204

29

Fuse Block Cover

722176

30

721/725 92 Reg Wiring Assembly

603869

return to 721 index return to top of page
