Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

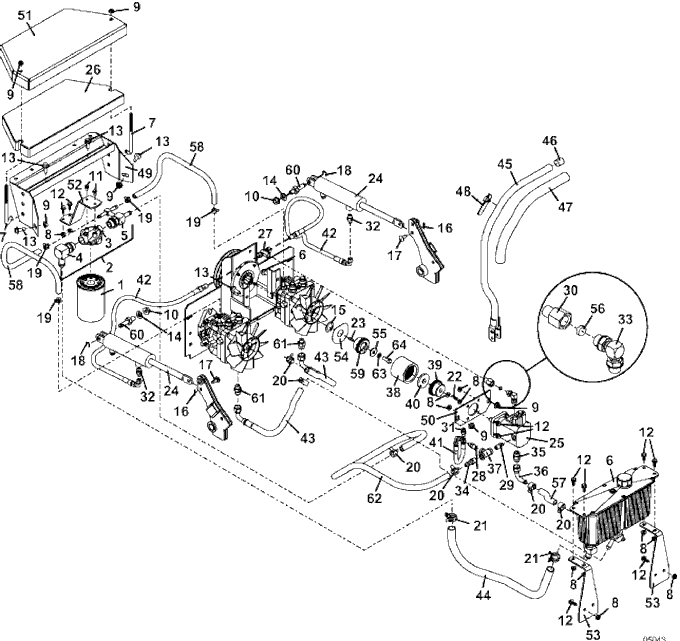

721DH2 • Optional Hydraulic Lift Assembly

2005

Hydraulic Lift Assembly (Optional)

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Transmission Oil Filter

100860

2

H2 Filter Base Assembly with Hyd

101022

3

Filter Base

101027

4

12 Bead O-ring Adapter

360076

5

12 O-ring Adapter

360077

6

G2 Oil Tank Assembly

101690

7

Hook Bolt

240151

8

Whiz Nut

253035

9

Whiz Nut

253043

10

Whiz Nut

253066

11

Hex Whiz Bolt

253173

12

Hex Flange Whiz Bolt

253192

13

Flange Whiz Bolt

253203

14

Washer

257062

15

Washer

257106

16

Cotter Pin

260648

17

Clevis Pin

261339

18

External Retainer

263500

19

Spring Hose Clamp

280264

20

Spring Hose Clamp

280266

21

Spring Hose Clamp

280268

22

Square Key

281540

23

Square Key

281580

24

Hydraulic Cylinder

290021

-

Hydraulic Lift Cylinder HD Seal Kit

290096

25

Counter-Clockwise Hydraulic Pump w/Solenoid Valve

290074

-

Seal

125166

-

Hydraulic Solenoid Valve

144950

26

750 Counterweight

323951

27

Swivel Tee Adapter

360005

28

Adapter Fitting

360012

29

O-Ring Adapter

360040

30

O-Ring Adapter

360045

31

O-Ring Adapter

360050

32

O-Ring Adapter

360052

33

90 degree O-Ring Adapter

360055

34

Brass Hose Insert

360260

35

Steel O Ring Boss Fitting

363832

-

O-Ring

126527

-

O-Ring

126535

36

Fitting

363857

37

Reducer Tee

366115

38

Nylon Coupler Sleeve

388560

39

Coupler Hub

388576

-

Set Screw

259302

40

Coupling Stabilizer

424150

41

Hose Assembly

424302

42

Hose Assembly

424310

43

Hose Assembly

424349

44

.75 Hydraulic Hose

821804

45

Wide STD Strg Lever Assembly w/SW

604779

46

.75 ID Vinyl Cap

422095

47

Handle Grip

422179

48

Hydraulic Lift Switch & Mount Assembly

604799

-

Black Button Cup

183943

49

Weight Mount

643915

50

Pump Mount Plate

725326

51

50 lb. Weight Cover

729691

52

Filter Mount

732614

53

right Aluminum Oil Tank Mount

755128

54

Washer

770045

55

Washer

774020

56

Flow Restrictor

780507

57

Hydraulic Hose

821781

58

Hydraulic Hose

821802

59

Lower Flex Coupler

831039

60

Cylinder Mount Pin with Groove

887119

61

Adapter Fitting

360081

62

.5 Hydraulic Hose

821806

63

Lock Washer

257412

64

Hex Bolt

243331
