Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

721DH2 • PTO Shaft & Clutch Assembly

2005

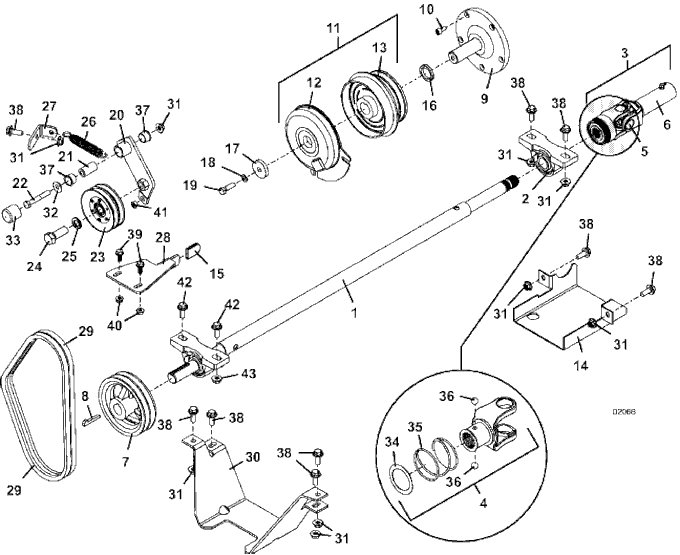

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

41.5 Power Shaft

644725

2

Pillowblock SC Bearing

122044

-

Set Screw

259305

3

UN Half Sleeve

398914

4

QD Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401017

7

Sheave

415650

8

Gib Square Key

281588

9

Clutch Stub Shaft

824637

10

M8 Socket Head Screw

270075

11

Clutch Integral Plug

388769

12

Field Assembly w/Brake

388872

13

Armature & Rotor Assembly

388862

14

PTO Shaft Shield

729287

15

Clutch Bracket Cover

422088

16

Spacer

902583

17

Washer

883803

18

Lock Washer

257412

19

GR8 Hex Bolt

243337

20

PTO Idler Arm

824499

-

Oilite Bearing

121756

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Sheave

415610

24

Hex Bolt

243805

25

Washer Lock

257452

26

Spring Extension with Swivel

283820

27

Idler Spring Bracket

732539

28

700 Anti-Rotation Bracket

725118

29

Belt

381914

30

700 Sheave Guard

725286

31

Whiz Nut

253043

32

Washer

257040

33

Vinyl Cap

422098

34

External Retainer

263660

35

Compression Spring

283525

36

Steel Ball

300014

37

Oilite Bearing

121756

38

Whiz Flange Bolt

253203

39

Hex Flange Whiz Bolt

253192

40

Whiz Nut

253035

41

Nylon Bearing

422520

42

Hex Bolt

243340

43

Washer

257040

-

Nut

254450

-

Lock Washer

257412

return to 721DH2 index return to top of page
