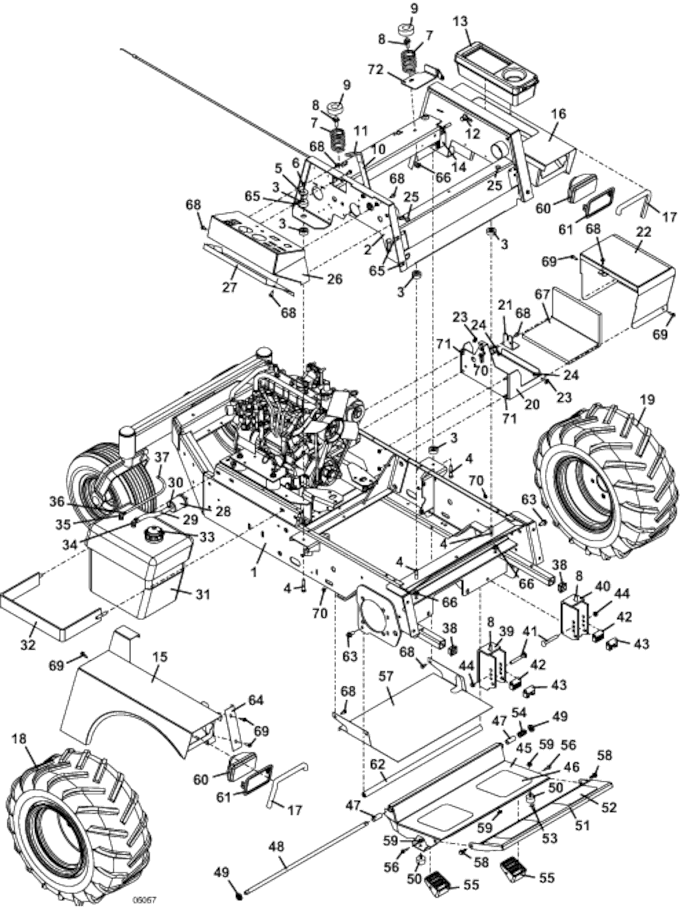

721DH2 • Tractor Assembly

2007

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

721DH2 Lower Frame

644368

2

G2 2005 Upper Frame

643872

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

322D/722D Throttle Assembly

603858

-

Throttle Cable Assembly

323656

-

Throttle Lever Stop

722009

-

Heavy Duty Throttle Stop

722736

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

13

Tool Box

422040

14

12v Voltage Regulator

185530

15

700/900S Right Fender with Decal

693210

-

721D .06 Right Trim Decal

163458

16

700/900S Left Fender with Decal

693211

-

721D .06 Left Trim Decal

163459

17

700/900 Fender Edge Trim

822635

18

Right Wheel & Bar Tread Tire, 22 x 11 x 10

483942

-

Turf Tire, 22 x 10 x 10

482473

-

Bar Tread Tire, 22 x 11 x 10

482483

-

5 Bolt Wheel, 10 x 8.5

483420

-

Wheel & Turf Tire, 22 x 10 x 10

483946

19

Left Wheel & Bar Tread Tire, 22 x 11 x 10

483943

-

Turf Tire, 22 x 10 x 10

482473

-

Turf Tire, 22 x 11 x 10

482477

-

Bar Tread Tire, 22 x 11 x 10

482483

-

5 Bolt Wheel, 10 x 8.5

483420

-

Wheel & Turf Tire, 22 x 10 x 10

483946

20

Battery Box without Draw Latch

644163

21

Battery Hold Down Bracket

754135

22

Battery Box Lid without Draw Latch

644478

23

Washer

257020

24

Nylon Insert Nut

253440

25

Rubber Bumper

424015

26

Console with Decal for Liquid-Cooled Diesel

693104

27

96 Console Fill Panel

721152

28

Kubota Fuel Prefilter

101005

29

Fuel Line Hose

821713

30

Spring Hose Clamp

280261

31

Diesel Fuel Tank Assembly

603812

32

Fuel Tank Mounting Bracket

643144

33

Cap with Fuel Level

141125

34

Fuel Draw Tube

101818

35

Fuel Draw Tube

101817

36

Spring Hose Clamp

280257

37

Fuel Line Return Hose

821740

38

1" ID Square Plastic Plug

422065

39

Right QD 700/900 Deck Mount

643092

40

Left QD 700/900 Deck Mount

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

700/900 Adjustable Foot Platform Assembly

604346

46

Foot Rest Tread

420905

47

Nylon Bearing

422615

48

700 Foot Platform Pivot Rod

780673

49

Nylon Insert Nut

253470

50

Rubber Bumper

424052

51

700 Foot Platform Extension

603301

52

Foot Rest Extension Tread

420904

53

Carriage Bolt

247130

54

Compression Spring

283312

55

Footrest Isolator Block

424100

56

Hex Bolt

243026

57

H2 Trash Shield

721388

58

Hex Flange Whiz Bolt

253192

59

Whiz Nut

253035

60

Flood Worklamp

182253

61

Snap Mount Worklamp Bezel

182251

62

Tension Rod

780900

63

Whiz Bolt

253200

64

Right Fender Cover Panel

722062

65

Speed Nut

254431

66

Whiz Nut

253043

67

Battery Tray Pad

427278

68

Hex Whiz Bolt

253173

69

Hex Whiz Bolt

253175

70

Whiz Nut

253025

71

Whiz Truss Bolt

253176

72

Brake Pin Reinforcement

729230

73

721DH2 Decal Set

605306
