Genuine OEM Grasshopper Lawn Mower Parts

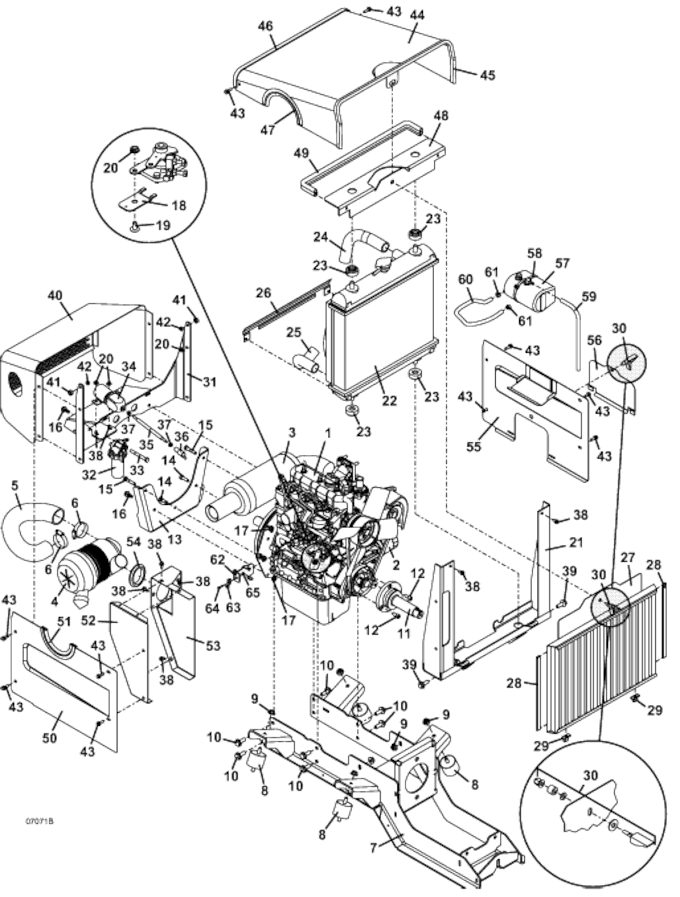

Genuine OEM Grasshopper® Mower Parts Diagrams

721DT • Engine Assembly

2010

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100176

2

Kubota Oil Filter

100800

3

Kubota Muffler & Gasket

603590

-

Kubota Exhaust Flange Gasket

101040

4

Air Cleaner

100208

-

Clip for Air Cleaner Cover

100197

-

NOT AVAILABLE

100198

-

Dust Ejector

100202

-

4″ Air Cleaner Weather Hood

100218

-

Outer HD Air Filter

100942

-

Inner HD Air Filter

100943

5

721D Air Intake Hose

424527

6

Screw Type Hose Clamp

280303

7

721DT Drive Train Mount

644878

8

Vibration Isolator

424073

9

Whiz Nut

253043

10

Hex Bolt

271121

11

Kubota Machined Front Shaft

824412

12

M8 Socket Head Screw

270075

13

PTO Rear Mount

644863

14

Hex Head

271023

15

Hex Head Bolt

271055

16

Flanged Hex Head Whiz Bolt

253192

17

Whiz Nut

253035

18

Throttle Cable Extension Linkage

723063

19

Truss Whiz Bolt

253176

20

Whiz Nut

253025

21

Lower Radiator Mount

644655

22

Kubota Radiator

101612

23

Radiator Mount Isolator Bushing

101080

24

Upper Radiator Hose

101058

25

Lower Radiator Hose

101059

26

Fan Shield

721006

27

Grille with Guard

644668

28

Radiator Grille Trim

822636

29

Rear Belt Shield Isoaltor

422090

30

Swell Latch Assembly

604805

31

Rear Hood Support

644851

32

Kubota Fuel Filter

101000

33

Whiz Bolt

253197

34

Fuel Solenoid Assembly

603350

35

Fuel Solenoid Cable Assembly

603209

36

Ball Joint

265610

37

Nut

254434

38

Hex Whiz Bolt

253173

39

Flanged Whiz Nut

253203

40

Rear Hood W-A

645305

41

.25 Thick Spacer

902297

42

Lock Nut

253850

43

Hex Whiz Bolt

253175

44

Upper Hood

644819

45

Front Hood Trim

822639

46

Rear Hood Trim

822637

47

Air Cleaner Trim Seal

822515

48

Radiator Channel Clamp

729327

49

Hood Bulb Seal

822518

50

Right Hood Side

722978

51

Air Cleaner Trim Seal

822510

52

Intake Box Mount

644067

53

Intake Box Cover

644071

54

Grommet

424297

55

Left Hood Side

644852

56

Oil Filter Cover

722722

57

Expansion Tank

422012

58

Tie

423154

59

Clear Vent Hose

821748

60

Hose

821749

61

Hose Spring Clamp

280260

62

Throttle Cable Mount

724273

63

Conduit Clip

180635

64

Machine Screw

250258

65

Whiz Nut

253020

Return to 721DT Index Return to Top
