Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

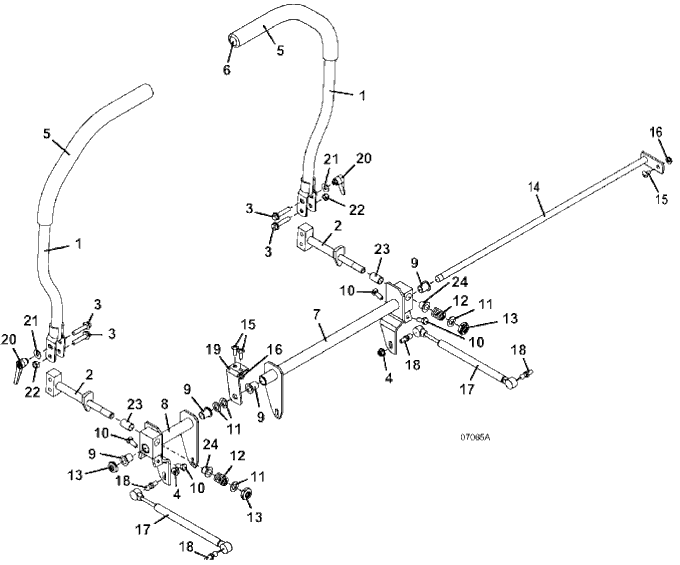

721DT • Steering Assembly

2010

Steering Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever Assembly - Wide STD

604778

2

Adjustable Steering Lever Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Whiz Nut

253035

5

Handle Grip

422179

6

.75 ID Vinyl Cap

422095

7

Right Steering Pivot with Stop & Bearings

604832

8

Left Steering Pivot with Stop & Bearings

604833

9

Sleeve Bearing w/Flange

422559

10

Hex Bolt

243197

11

Washer

257063

12

Compression Spring

283324

13

Nylon Insert Nut

253470

14

700T Steering Pivot

644601

15

Philips Truss Whiz Bolt

253179

16

Whiz Nut

253025

17

Reverse Damper with Ball Socket

285032

18

Ball Stud

265680

19

700T Steering Rod Support

729404

20

Adjustable Lever Nut

254438

21

Flat Washer

257019

22

Nylon Insert Nut

253450

23

Sleeve Bearing

422557

24

Sleeve Bearing w/Flange

422556
