Genuine OEM Grasshopper® Mower Parts Diagrams

721DT • Wiring & Lights

2010

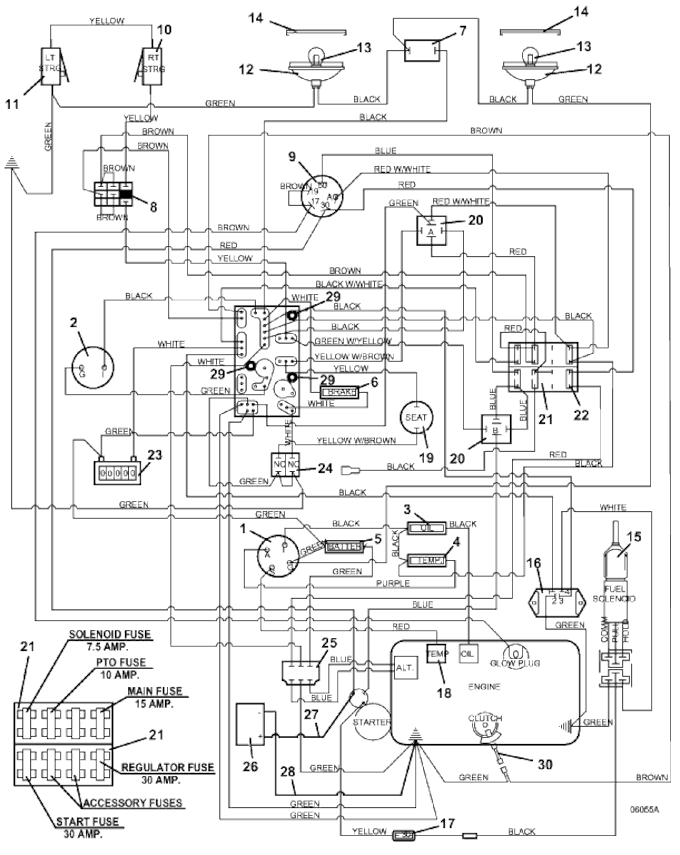

Wiring - Electrical System

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

2

Voltmeter Gauge

141200

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Switch Push/Pull

183925

9

Switch Key Sealed - Kubota

183827

-

Kubota Double Notch Ignition Key

101106

10

Lever Switch

183860

-

Steering Switch Mount - right

720160

11

Lever Switch

183860

-

Steering Switch Mount - left

720161

12

Worklamp Flood

182253

13

Light Bulb for Headlight

182005

14

Snap Mount Worklamp Bezel

182251

15

Fuel Solenoid Assembly

603350

16

Switch Interlock Module

184220

17

Inline Auto Fuse Holder

181735

-

30 Amp Auto Fuse

181470

18

temperature Sender

141222

19

Twist-in Seat Switch

183871

20

12V DC Relay

184272

-

Type 1 6mm Push-On

184570

-

.250 Fast-On Terminal

184581

-

5-Way Female Connector

184926

21

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Fuse Clip

184472

22

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

-

15 amp Auto ATC Fuse

181465

23

Snap In Hour Meter

141551

24

Brake Interlock Switch

183894

25

12V Voltage Regulator

185530

26

12 Volt Side Post Wet Battery

180130

-

12V Side Post Dry Battery

180131

-

Hex Bolt

243309

-

Battery Box without Draw Latch

644163

-

Battery Box Lid without Latch

644478

-

Battery Hold Down Bracket

754135

27

14" Battery Cable - Red

180313

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

28

20" Battery Cable - Black

180282

29

PC Board Support Spacer

423690

30

Pigtail Cable Assembly

388840

31

721DT Wiring Assembly

605934

32

700D/900D Console Pic Decal

161126

Return to 721DT Index Return to Top
