Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

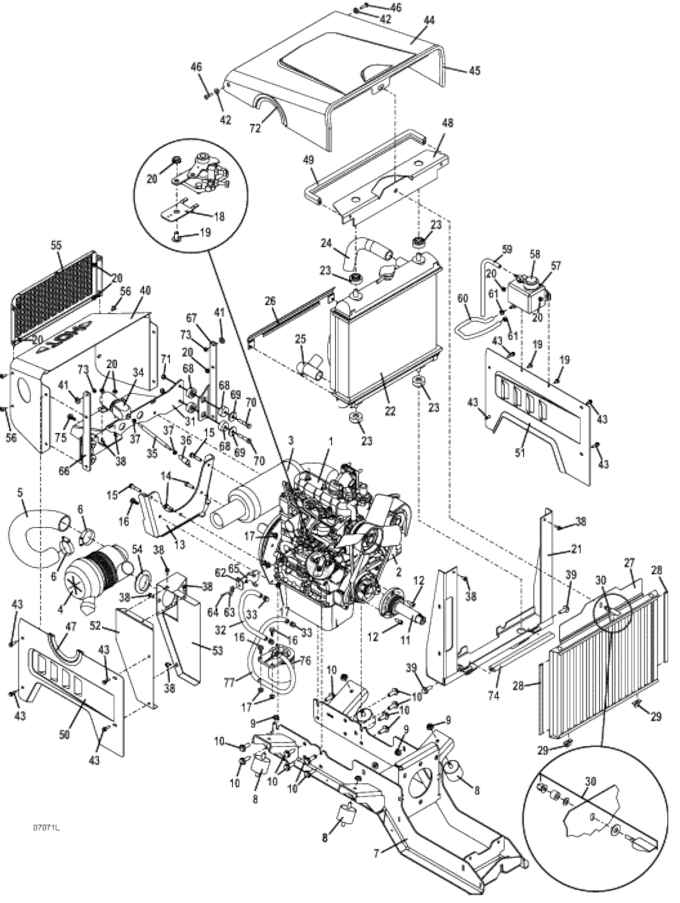

721DT • Engine Assembly

2017

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100176

2

Kubota Oil Filter

100800

3

Kubota Muffler & Gasket

603590

-

Kubota Exhaust Flange Gasket

101040

4

Air Cleaner

100208

-

Outer HD Air Filter

100942

-

Inner HD Air Filter

100943

5

721D Air Intake Hose

424527

6

Screw Type Hose Clamp

280303

7

721DT Drive Train Mount

644878

8

Vibration Isolator

424073

9

Whiz Nut

253043

10

Hex Bolt

271121

11

Clutch Stub Shaft

824415

12

M8 Socket Head Screw

270075

13

PTO/Idler Mount

645566

14

Hex Head

271023

15

Hex Head Bolt

271055

16

Flanged Hex Head Whiz Bolt

253192

17

Whiz Nut

253035

18

Throttle Cable Extension Linkage

723063

19

Truss Whiz Bolt

253176

20

Whiz Nut

253025

21

Lower Radiator Mount

644655

22

Kubota Radiator

101612

23

Radiator Mount Isolator Bushing

101080

24

Upper Radiator Hose

101058

25

Lower Radiator Hose

101059

26

Fan Shield

721006

27

Grille with Guard Assembly

604382

28

Radiator Grille Trim

822636

29

Rear Belt Shield Isoaltor

422090

30

Swell Latch Assembly

604805

31

700DT Rear Hood Support

645851

32

Fuel Hose

821729

33

Spring Hose Clamp

280261

34

Fuel Solenoid Assembly

603350

35

Fuel Solenoid Cable Assembly

603209

36

Ball Joint

265610

37

Nut

254434

38

Hex Whiz Bolt

253173

39

Flanged Whiz Nut

253203

40

721DT Hood Box Panel

722932

41

Hood Hinge Spacer

901324

42

Step Bushing

422508

43

Hex Whiz Bolt

253175

44

721DT/321D W/A Engine Hood

645315

45

Front Hood Trim

822639

46

Bolt

253181

47

9.0 Air Cleaner Trim Seal

822510

48

Radiator Channel Clamp

729327

49

Hood Bulb Seal

822518

50

721D Right Hood Side

722928

51

321D/721D Left Hood Side

762520

52

Intake Box Mount

644067

53

Intake Box Cover

644071

54

Grommet

424297

55

Bolt In Grille Panel

721294

56

Bolt

253180

57

Expansion Tank Assembly

604340

58

Reservoir Cap w/Gasket

421990

-

O-Ring

425550

59

Clear Vent Hose

821748

60

Hose

821749

61

Hose Spring Clamp

280260

62

Throttle Cable Mount

724273

63

Conduit Clip

180635

64

Machine Screw

250258

65

Whiz Nut

253020

66

700T Right Upright Hood Support

725576

67

700T Left Upright Hood Support

725577

68

Rubber Step Bushing

424005

69

Washer

774020

70

Hex Bolt

243220

71

Nylon Insert Nut

253450

72

Seat Edge Trim

822630

73

Nylon Insert Nut

253440

74

Lower Radiator Seal

822507

75

Hex Whiz Bolt

253194

76

Kubota Fuel Filter

101004

77

300S Fuel Line Hose

821717
