Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725A • Console

2003

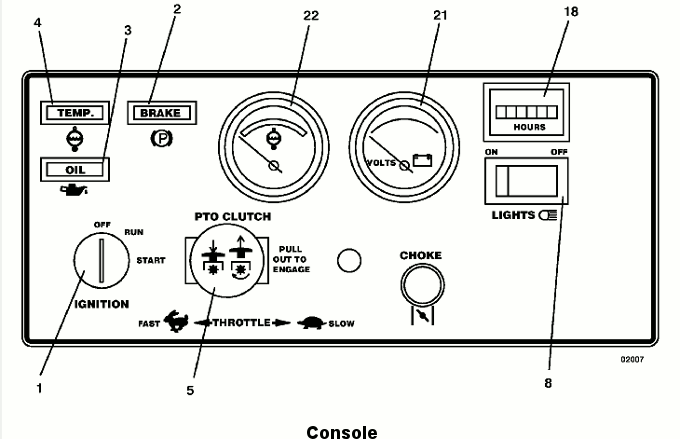

Console

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Ignition w/Cover

101101

2

Brake Indicator Light

182326

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Push/Pull Switch

183925

8

Rocker Switch

184179

18

Snap-In Hour Meter

141551

21

Voltmeter Gauge

141200

22

Temp Zoned Electric Gauge

141160

23

725A Console Decal

161133
