Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725A • Engine Assembly

2003

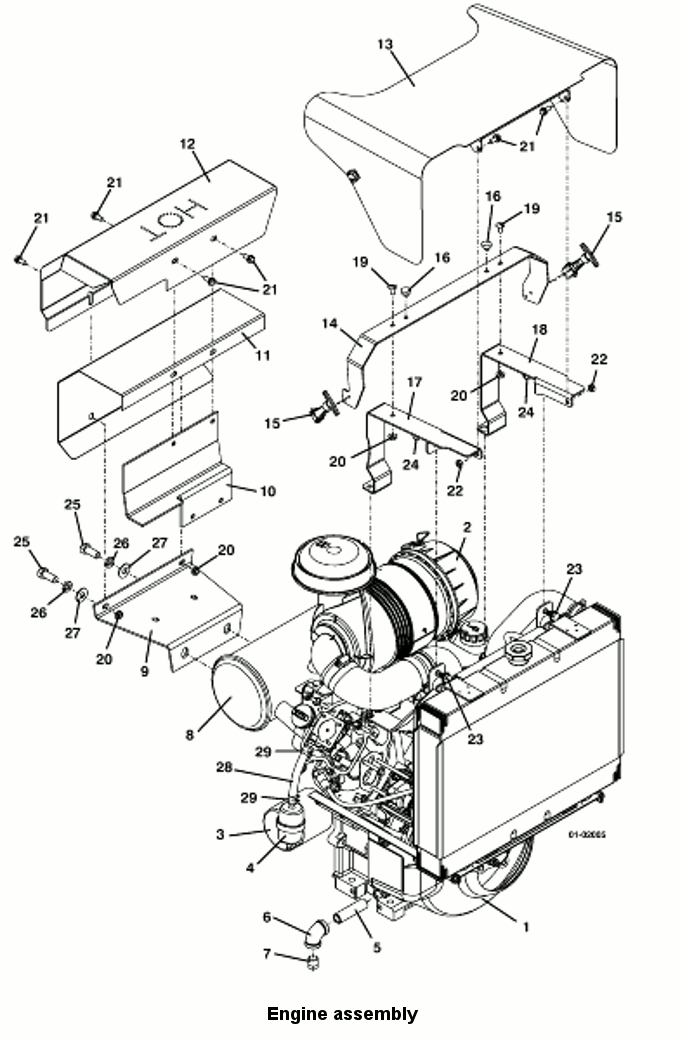

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

25HP Kohler Engine

100174

2

Air Filter - Outer HD

100936

Air Filter - Inner HD

100937

3

Kohler Oil Filter

100802

4

Kohler Fuel Filter

101001

5

Nipple

364518

6

ELL

362215

7

Pipe Plug - Metal

365515

8

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

9

Lower Muffler Bracket

729270

10

Shield Mount Bracket

643117

11

Inner Panel Shield

722309

12

Muffler Shield

722391

13

Hood - WC W/A

644324

14

Hood Mount - Hold Down

754165

15

Rubber Latch - Draw

281301

16

Rubber Bumper

424015

17

Mount Bracket - Hood RT

754140

18

Mount Bracket - Hood LT

754141

19

Bolt Whiz Truss

253176

20

Whiz Nut

253025

21

Bolt Whiz Hex

253173

22

Nut - Insert - Nylon

253440

23

Bolt Whiz

253189

24

Whiz Nut

253035

25

Hex Bolt

243445

26

Lock Washer

257422

27

Washer

257040

28

Fuel Hose

821710

29

Hose Clamp - Spring

280260
