Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

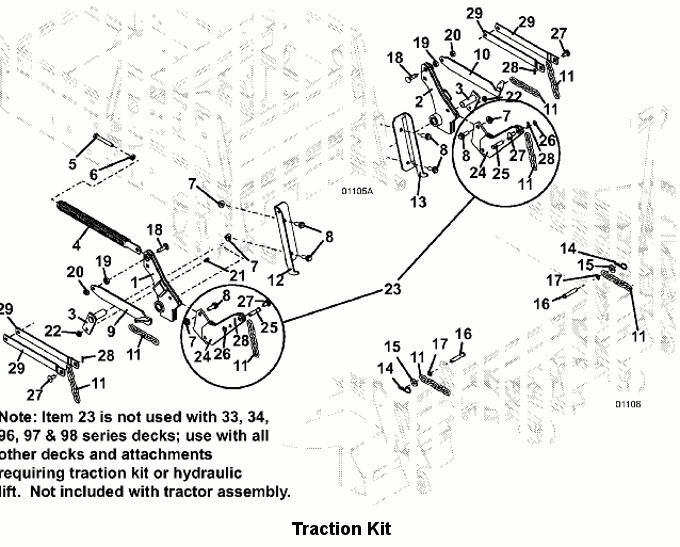

725A • Traction Kit

2003

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

ROCKER W/O EXTENSION RT

603701

-

BEARING OILITE

121764

2

ROCKER W/O EXTENSION LT

603702

-

BEARING OILITE

121764

3

PIN - TRACTION KIT W/A

644635

4

SPRING ASSEMBLY - TRACTION KIT

605760

5

HEX BOLT

243395

6

NUT

254450

7

CARRIAGE BOLT

247254

8

SPACER .25 - TRACTION KIT

881095

9

STRAP - LIFT 600 W/SL DECK

732410

10

NUT LOCK

253890

11

CHAIN - LIFT

820320

12

CLEVIS PIN

261339

13

COTTER PIN

260648

14

HAIR PIN

260523

15

WASHER

257040

16

CLEVIS PIN

261362

17

RETAINER - PUSH ON

262950

18

BOLT WHIZ HEX FLANGE

253192

19

NUT WHIZ

253035

20

EXTENSION - ROCKER ARM

644706

21

BOLT WHIZ FLANGE

253203

22

NUT WHIZ

253043

23

ROCKER EXTENSION KIT 700/900

604708
