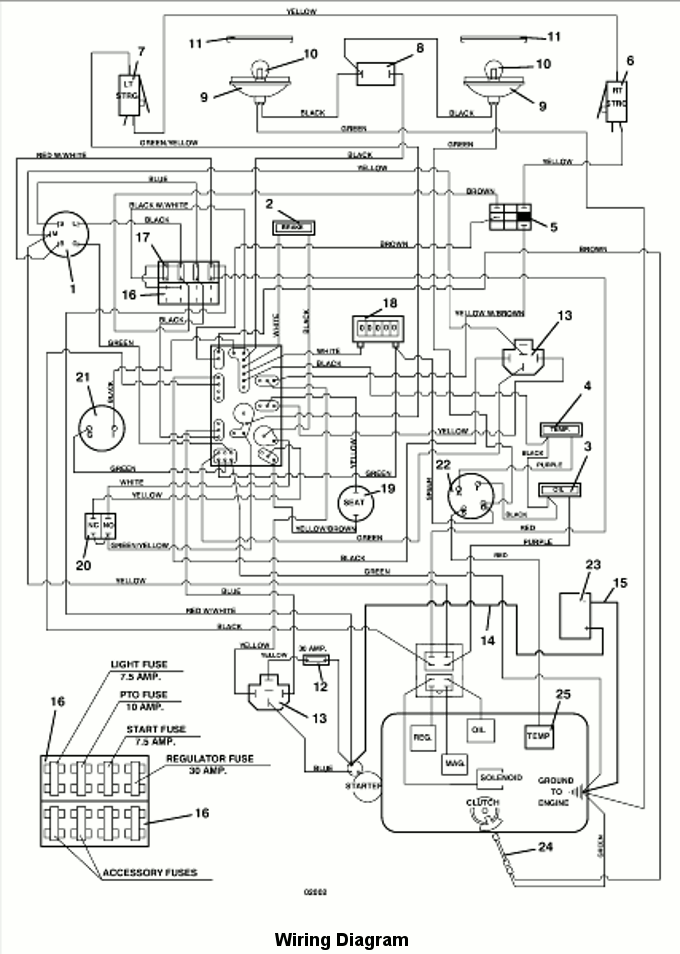

Item # |
Description |
Part Number |
1 |
SWITCH - KEY B&S KOHLER |
183806 |
- |
KEY IGNITION W/COVER |
101101 |
- |
NUT |
254498 |
- |
PANEL PLASTIC |
422078 |
2 |
LIGHT INDICATOR - BRAKE |
182326 |
3 |
LIGHT INDICATOR - OIL |
182327 |
4 |
LIGHT INDICATOR - TEMP |
182328 |
5 |
SWITCH - PUSH/PULL |
183925 |
6 |
SWITCH - LEVER |
183860 |
- |
MOUNT - STEERING SWITCH RT |
720160 |
7 |
SWITCH - LEVER |
183860 |
- |
MOUNT - STEERING SWITCH LT |
720161 |
8 |
SWITCH - ROCKER |
184179 |
9 |
WORK LAMP - FLOOD |
182253 |
10 |
LIGHT BULB - WORK LAMP |
182005 |
11 |
BEZEL SNAP MOUNT WORK LAMP |
182251 |
12 |
FUSE HOLDER - INLINE AUTO |
181735 |
- |
FUSE - AUTO - ATC 30 |
181470 |
13 |
TERMINAL - .250 FASTON |
184581 |
- |
CONNECTOR - 5 WAY FEMALE |
184926 |
14 |
CABLE - BATTERY 16 RED |
180315 |
- |
BOOT BATTERY TERMINAL |
425219 |
15 |
CABLE - BATTERY 16 BLACK |
180276 |
16 |
FUSE BLOCK |
181722 |
- |
FUSE CLIP - 1 WIRE |
184458 |
- |
FUSE CLIP - 2 WIRE |
184460 |
- |
FUSE CLIP - DOUBLE CLIP |
184472 |
17 |
FUSE - AUTO ATC - 30 |
181470 |
- |
FUSE - AUTO ATC - 7.5 |
181460 |
- |
FUSE - AUTO ATC - 10 |
181462 |
18 |
HOUR METER - SNAP IN |
141551 |
19 |
SWITCH - SEAT |
183870 |
20 |
SWITCH BRAKE - INTERLOCK |
183894 |
21 |
GAUGE - VOLTMETER |
141200 |
22 |
GAUGE - TEMP ZONED ELECTRIC |
141160 |
23 |
BATTERY - 12 VOLT - WET |
180125 |
- |
BATTERY - 12 VOLT - DRY |
180126 |
- |
BATTERY BOX - G2 AC |
644099 |
- |
COVER - BATTERY AC |
644162 |
24 |
CABLE ASSEMBLY - PIGTAIL |
388840 |
25 |
TEMPERATURE SENDER |
141218 |
26 |
WIRING ASSEMBLY - 725A |
604980 |
27 |
DECAL - CONSOLE 725A |
161133 |
