Genuine OEM Grasshopper® Mower Parts Diagrams

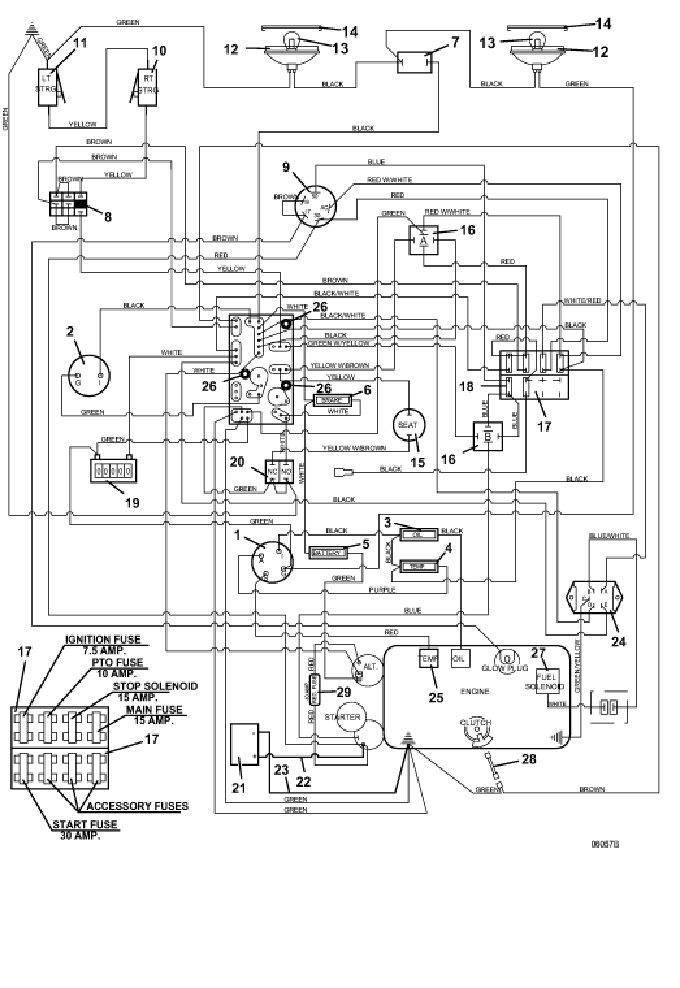

725DT6 • Wiring & Lights
2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Zoned Electric Temperature Gauge |
141160 |
2 |
Voltmeter Gauge |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Switch Push/Pull |
183925 |
9 |
Switch Key Sealed - Kubota |
183827 |
- |
Kubota Double Notch Ignition Key |
101106 |
10 |
Lever Switch |
183860 |
- |
Steering Switch Mount - right |
720160 |
11 |
Lever Switch |
183860 |
- |
Steering Switch Mount - left |
720161 |
12 |
Worklamp Flood |
182253 |
13 |
Light Bulb for Headlight |
182005 |
14 |
Snap Mount Worklamp Bezel |
182251 |
15 |
Twist-in Seat Switch |
183871 |
16 |
12V DC Relay |
184272 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Fast-On Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Fuse Clip |
184472 |
18 |
30 amp Auto ATC Fuse |
181470 |
- |
7.5 amp Auto ATC Fuse |
181460 |
- |
10 amp Auto ATC Fuse |
181462 |
- |
15 amp Auto ATC Fuse |
181465 |
19 |
Snap In Hour Meter |
141551 |
20 |
Brake Interlock Switch |
183894 |
21 |
12 Volt Side Post Wet Battery |
180130 |
- |
12 Volt Side Post Dry Battery |
180131 |
- |
Hex Bolt |
243309 |
22 |
14" Battery Cable - Red |
180313 |
- |
Alternator Terminal Red Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
- |
Battery Terminal Boot |
425223 |
23 |
20" Battery Cable - Black |
180282 |
24 |
D902 Switch Interlock Manual |
184217 |
25 |
Temperature Sender |
141222 |
26 |
PC Board Support Spacer |
423690 |
27 |
Fuel Valve Solenoid |
101046 |
28 |
Pigtail Cable Assembly |
388840 |
29 |
Inline Regulator Fuse Holder |
604888 |
- |
40 amp Auto ATC Fuse |
181475 |
30 |
725DT6 Wiring Assembly |
605877 |
31 |
Console Decal |
161123 |
