Genuine OEM Grasshopper® Mower Parts Diagrams

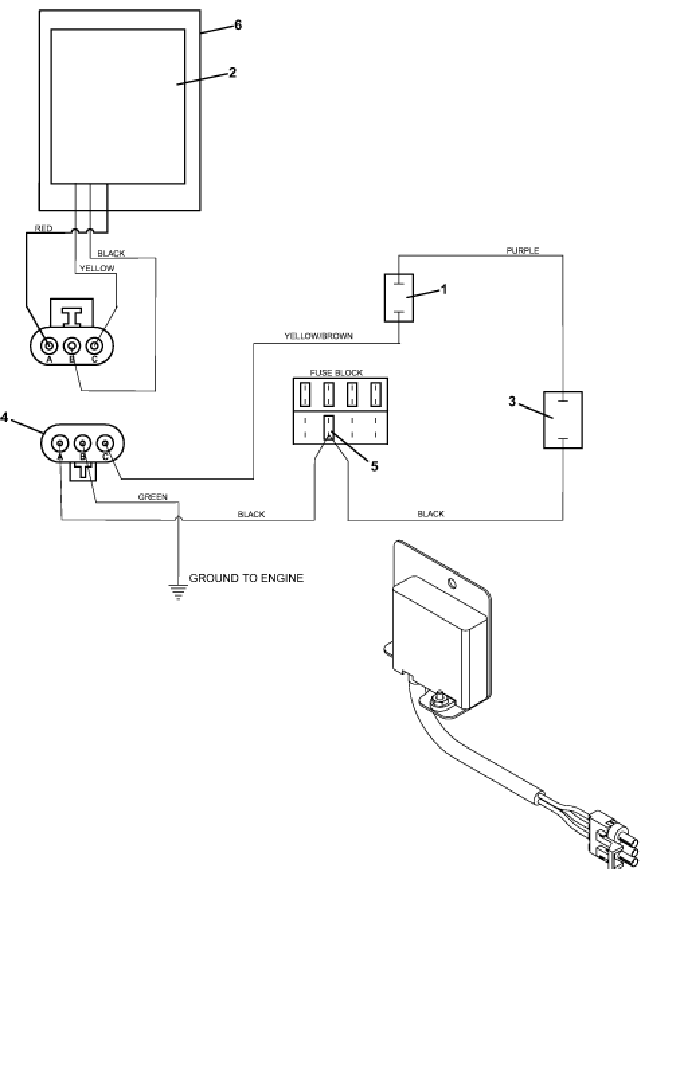

725DT6 • Wiring for Hydraulic Lift
2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Hydraulic Valve Solenoid |
144950 |
2 |
Power Components Tilt Switch |
183710 |
3 |
Sealed Dome Switch |
183940 |
- |
Black Button Cup |
183943 |
- |
Momentary Toggle |
183954 |
4 |
3-Way Male Terminal Connector WP |
184973 |
5 |
Auto ATC Fuse - 7.50 |
181460 |
6 |
Tilt Switch Mount |
722747 |
