Genuine OEM Grasshopper® Mower Parts Diagrams

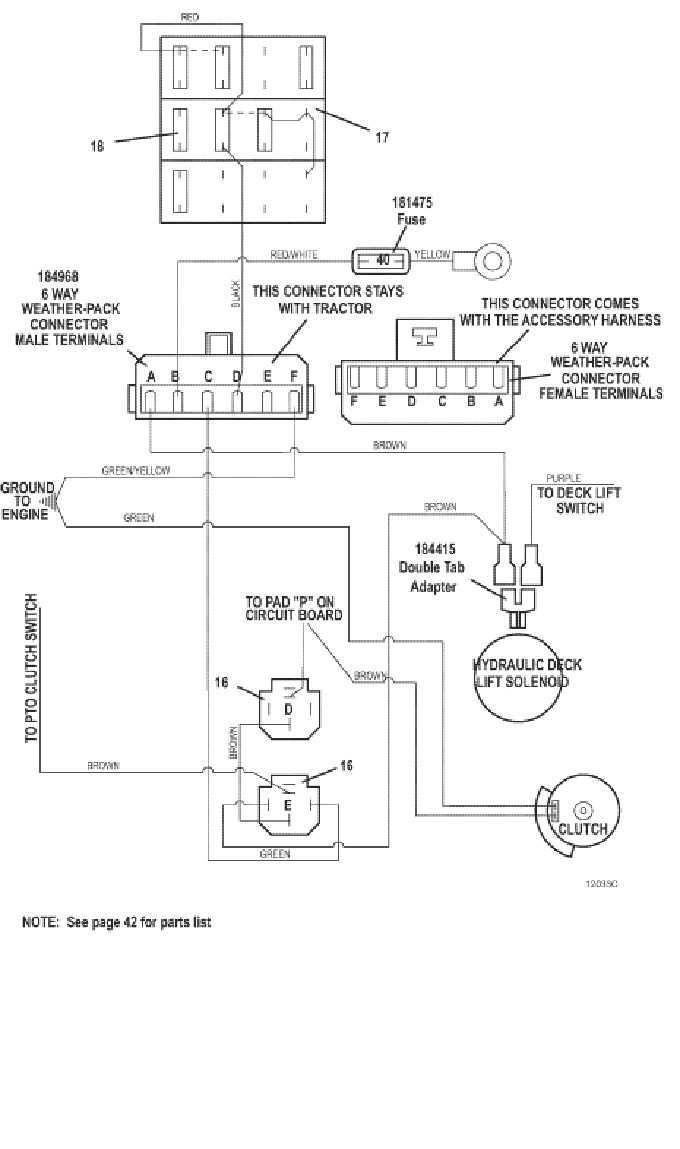

725DT6 • Wiring Diagram (cont) Universal Wiring Harness - Above Serial #6312279
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
16 |
12V DC Relay w/Diode |
184266 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Clip Fuse Clip |
184472 |
18 |
Auto ATC 30 Fuse |
181470 |
- |
Auto ATC 7.50 Fuse |
181460 |
- |
Auto ATC 10 Fuse |
181462 |
- |
Auto ATC 15 Fuse |
181465 |
