Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

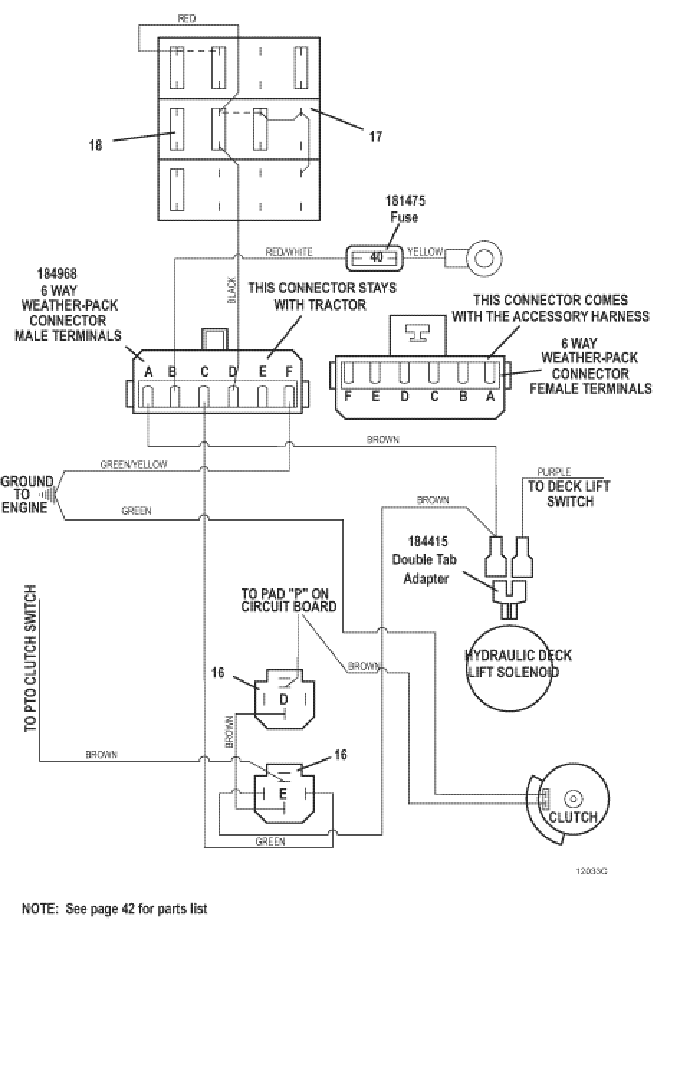

725DT6 • Wiring Diagram (cont) Universal Wiring Harness

2014

Universal Harness

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

16

12V DC Relay w/Diode

184266

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Clip Fuse Clip

184472

18

Auto ATC 30 Fuse

181470

-

Auto ATC 7.50 Fuse

181460

-

Auto ATC 10 Fuse

181462

-

Auto ATC 15 Fuse

181465

return to 725DT6 index return to top of page
