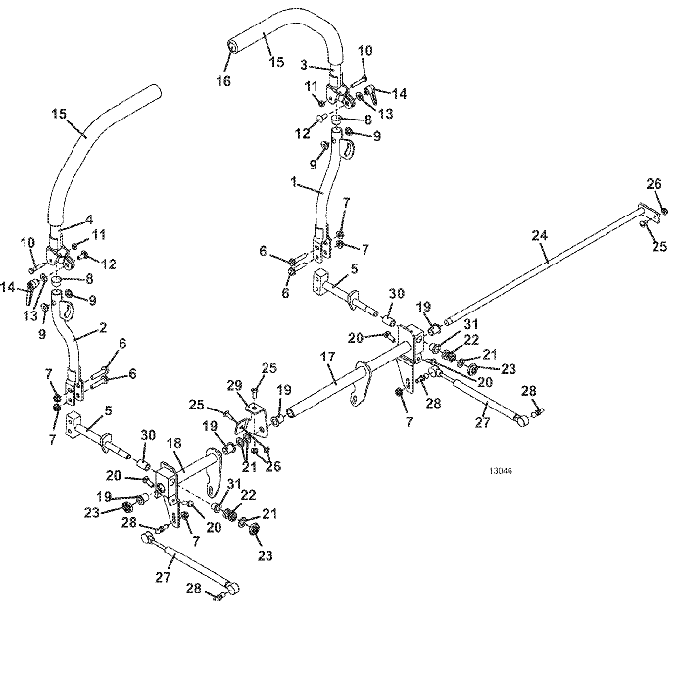

725DT6 • Steering Assembly
2016
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Lower Right Adjustable Steering Lever W/A |
645748 |
2 |
Lower Left Folding Steering Lever W/A |
645749 |
3 |
Upper Right Adjustable Steering Lever |
645744 |
4 |
700/900 Upper Left Adjustable Steering Lever W/A |
645745 |
5 |
Adjustable Steering Lever Mount |
643926 |
6 |
Hex Flange Whiz Bolt |
253195 |
7 |
Whiz Nut |
253035 |
8 |
Nylon Plug |
422063 |
9 |
Step Bushing |
422508 |
10 |
Hex Bolt |
243035 |
11 |
Lock Nut |
253850 |
12 |
Carriage Bolt |
247130 |
13 |
Flat Washer |
257019 |
14 |
Adjustable Lever Nut |
254438 |
15 |
Handle Grip |
422179 |
16 |
.75 ID Vinyl Cap |
422095 |
17 |
Right Pivot with Stop & Bearings |
604608 |
18 |
Left Pivot with Stop & Bearings |
604609 |
19 |
Sleeve Bearing w/Flange |
422559 |
20 |
Hex Bolt |
243197 |
21 |
Washer |
257063 |
22 |
Compression Spring |
283324 |
23 |
Nylon Insert Nut |
253470 |
24 |
700T Steering Pivot |
644601 |
25 |
Philips Truss Whiz Bolt |
253179 |
26 |
Whiz Nut |
253025 |
27 |
Reverse Damper with Ball Socket |
285032 |
28 |
Ball Stud |
265680 |
29 |
Steering Rod Support |
729700 |
30 |
Sleeve Bearing |
422557 |
31 |
Sleeve Bearing w/Flange |
422556 |
