Genuine OEM Grasshopper Lawn Mower Parts

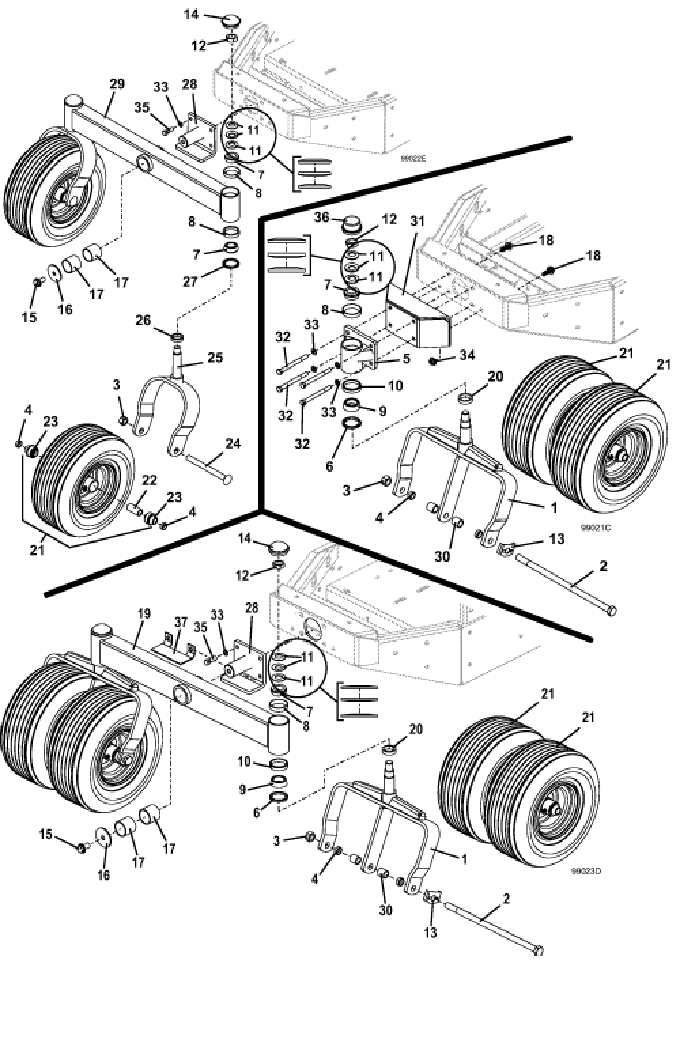

Genuine OEM Grasshopper® Mower Parts Diagrams

725DT6 • Tail Wheel Options

2016

Tail Wheel Options

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Dual Fork & Lock Nut Assembly

604366

2

Hex Bolt

243922

3

Lock Nut

253970

4

Axle Spacer

902422

5

RR Dual Fork Pivot Housing

824534

6

Seal

125855

7

Taper Bearing

122522

8

Bearing Cup

123522

9

Taper Bearing

122523

10

Bearing Cup

123521

11

Spring Washer

257320

12

Jam Nylon-Top Lock Nut

254505

13

Fork Bolt Lock

723008

14

Dust Cap

481434

15

Whiz Bolt

253243

16

Washer

257061

17

Reamed Oilite Bearing

833275

18

Whiz Flange Bolt

253203

19

Wide Dual Beam

824508

20

Spacer

830420

21

Rear Wheel Assembly with Bearing - 13 x 6.5 x 6

603975

-

Ribbed Tire

482355

-

Wheel without Tire - tan

483306

22

Axle Spacer

423750

23

DP Wheel Ball Bearing

120048

24

Carriage Bolt

247726

25

Tapered Bearing Tailwheel Fork

645221

26

Spacer

282615

27

Seal

125855

28

Rear Axle Tapped Pivot

643631

29

Dual Wheel Beam

824510

30

Axle Spacer

902425

31

Pivot Mount Adapter

643015

32

Hex Bolt .375-16 x 4

243385

33

Lock Washer

257412

34

Whiz Nut

253043

35

GR 8 Hex Bolt

243334

36

Dust Cap

481432

37

Axle Beam Spacer

900160
