Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

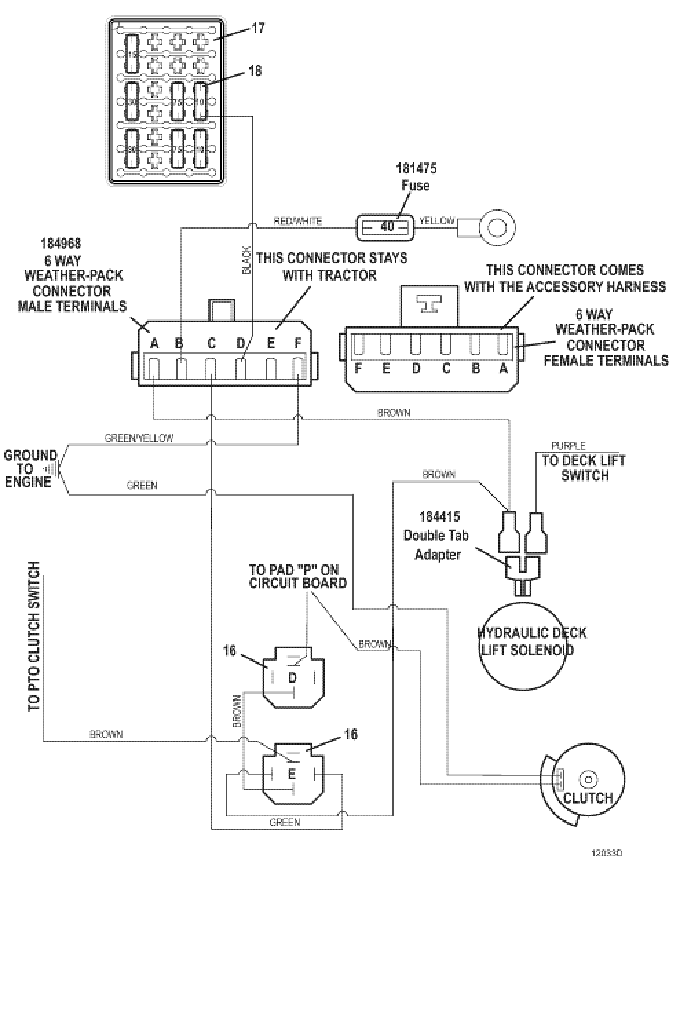

725DT6 • Wiring Diagram (cont) Universal Wiring Harness

2018

Universal Harness

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

16

12V DC Relay w/Diode

184266

17

Fuse Block

181725

-

Front Mount Decal Fuse

162341

-

Fuse Block Cover

181726

-

Cable Seal

184985

-

Cavity Plug

184986

-

Hex Bolt

270821

18

30 Amp Fuse

181456

-

7.50 Amp Fuse

181451

-

10 Amp Fuse

181452

-

15 Amp Fuse

181453
