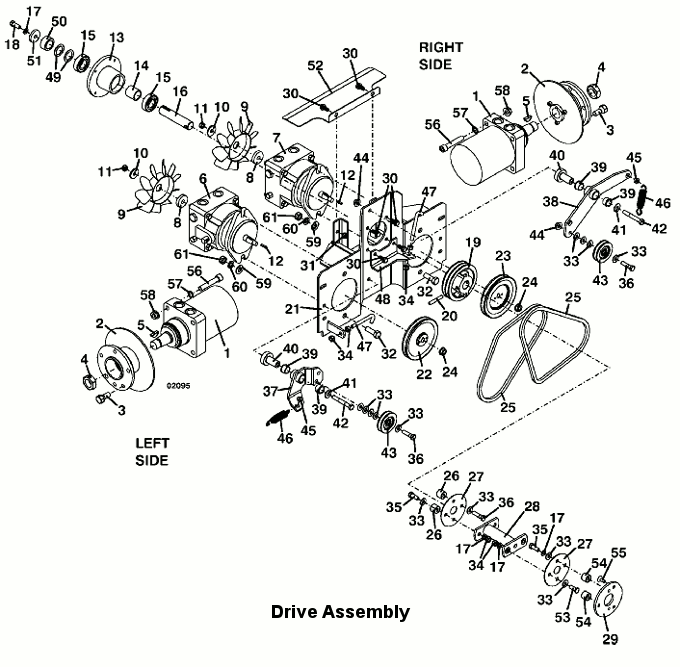

Genuine OEM Grasshopper® Mower Parts Diagrams

725G2 • Drive Assembly

2004

Click on diagram to view super-sized image.

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603604

2

Bolt-On Rotor Wheel Hub

604440

-

8.0 Brake Rotor

775192

-

Socket Head Screw

259592

3

Lug Bolt

248565

4

Nut

254522

5

Woodruff Key

281860

6

Hydro Pump - left

391452

-

Seal

125165

-

Seal Ring - Charge Cover - Square

130020

7

Hydro Pump - right

391453

-

Seal

125165

-

Seal Ring - Charge Cover - Square

130020

8

10A Fan Mount Hub

885123

9

CW 7” Nylon Fan

320857

10

Washer

774020

11

Nut

254452

12

Rectangle Key

281562

13

Vac Fan Spindle Housing

320522

14

Drive Bearing Spacer

903650

15

2 Reg Seal 25mm Ball Bearing

110081

16

700G2 Drive Shaft

882052

17

Lock Washer

257412

18

Hex Bolt

243331

19

Sheave

415036

20

Roll Pin

261061

21

Drive Mount - 900

644630

22

Sheave

415022

23

Sheave

415021

24

Flange Nut

253060

25

Belt

381537

26

G2 Drive Spacer

902328

27

Flex Coupling Disc

821530

28

Coupling Connector

644118

29

Coupling Adapter

783458

30

Hex Whiz Flange Bolt

253192

31

Whiz Nut

253035

32

Hex Bolt

243570

33

Washer

257030

34

Nut

254450

35

Bolt

243330

36

Bolt

243340

37

Idler Arm Assembly

824491

38

Idler Arm Assembly

824490

39

Oilite Bearing

121756

40

Pedestal Bearing

121650

41

Washer

257040

42

Hex Bolt

243360

43

Idler

604449

44

Whiz Nut

253043

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283819

47

Idler Adjustment J Bolt

730391

48

928 Spring Bracket

725028

49

Washer

257106

50

Spacer

282630

51

Washer

883801

52

G2 Fan Shield

723154

53

Hex Bolt

830040

54

Coupling Spacer

902318

55

M8 Flat Head Cap Screw

270346

56

Socket Head Screw

259640

57

Star Internal Washer

257430

58

Nut - Whiz

253066

59

Washer

257062

60

Lock Washer

257432

61

Nut

254470

return to 725G2 index return to top of page
