Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

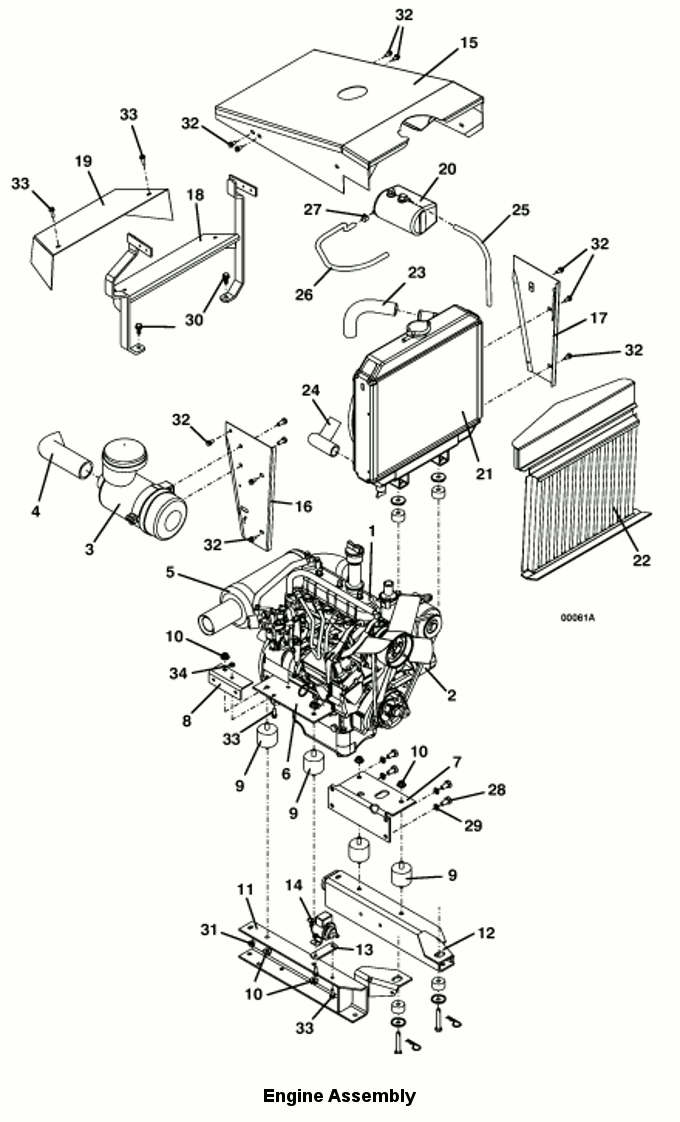

725G2 • Engine Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100171

2

Kubota Oil Filter

100800

3

Kubota Air Filter

100940

4

Hose - Air Intake

424519

5

Muffler & Gasket Assembly

603590

-

Exhaust Flange Gasket

101040

6

Engine Upper Mount - RT

643292

7

Engine Upper Mount - LT

643291

8

Coil Bracket

724091

9

Vibration Isolator

424078

10

Nut Whiz

253043

11

Engine Lower Mount - RT

643604

12

Engine Lower Mount - LT

643605

13

Mount Plate - Fuel Pump

782529

14

Electric Fuel Pump

101510

15

Hood - 700 w/Decals

693300

16

Grille Support RT

643799

17

Grille Support LT w/Decal

693260

18

Support Hood Rear

643797

19

Shield - Clutch

643766

20

Expansion Tank

422012

21

Kubota Radiator

101610

22

Grille Assembly w/Guard - 700 G2

604381

23

Radiator Hose - Upper

101054

24

Radiator Hose - Lower

101055

25

Clear Vent Hose

821748

26

Hose

821749

27

Spring Hose Clamp

280260

28

Hex Bolt

271120

29

Lock Washer

275580

30

Flange Whiz Bolt

253192

31

Whiz Nut

253035

32

Hex Whiz Bolt

253173

33

Hex Whiz Bolt

253175

34

Whiz Nut

253025

return to 725G2 index return to top of page
