Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

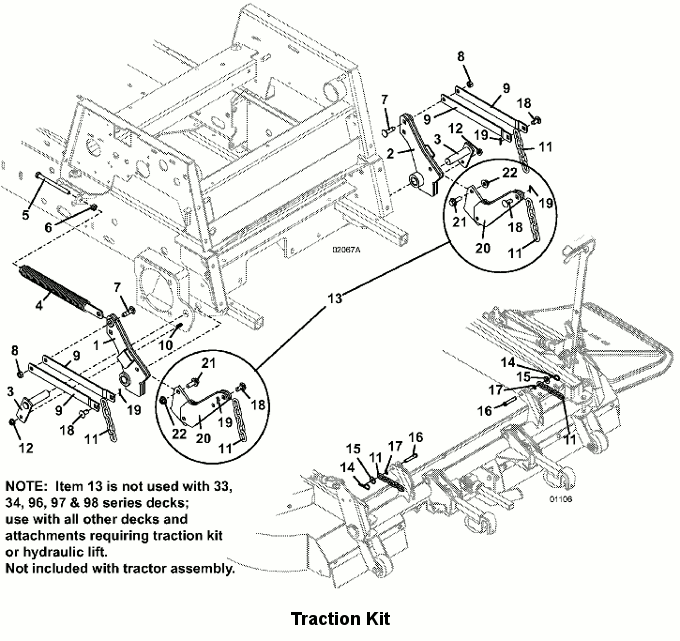

725G2 • Traction Kit

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rocker (without Extension) - right

603701

-

Oilite Bearing

121766

2

Rocker (without Extension) - left

603702

-

Oilite Bearing

121766

3

Traction Kit W/A Pin

644635

4

Spring and Plug Nut Assembly

604762

5

Hex Bolt

243395

6

Nut

254450

7

Carriage Bolt

247254

8

Lock Nut

253890

9

Lift Strap - 600 w/SL Deck

732410

10

Hex Flange Whiz Bolt

253192

11

Lift Chain - 5 Links

820320

12

Whiz Nut

253035

13

Rocker Extension Kit - 700/900

604708

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin .375 x 2 GR 5

261362

17

Push-On Retainer

262950

18

Clevis Pin

261339

19

Cotter Pin

260648

20

Rocker Arm Extension

644706

21

Flange Whiz Bolt

253203

22

Whiz Nut

253043
