Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

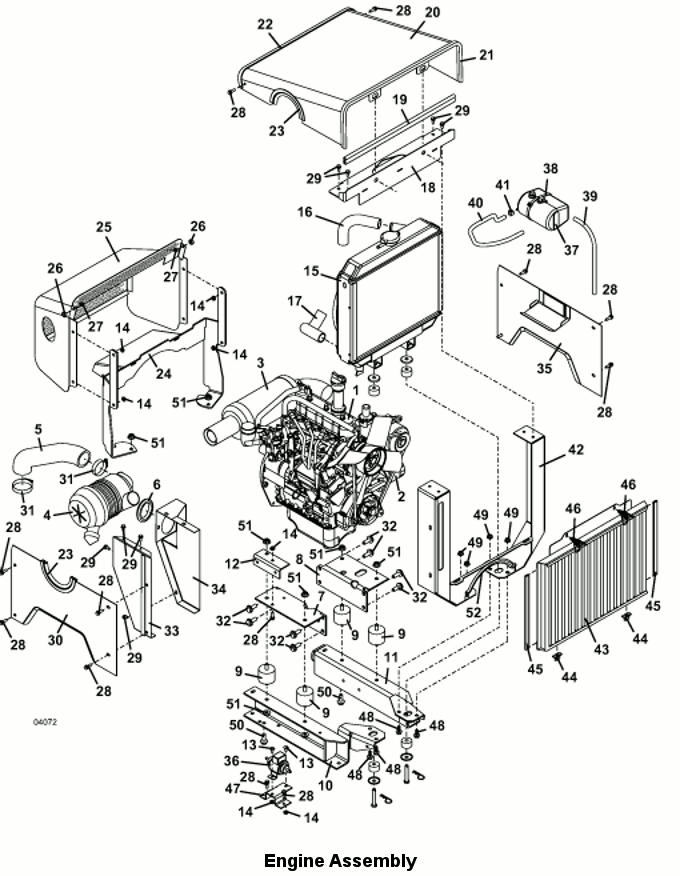

725G2 • Engine Assembly

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100171

2

Kubota Oil Filter

100800

3

Muffler & Gasket Assembly

603590

-

Exhaust Flange Gasket

101040

4

Air Cleaner

100208

-

Clip -Cover Air Cleaner

100197

-

Air Cleaner Cover

100198

-

Dust Ejector

100202

-

Weather Hood - 4 inch Air Cleaner

100218

-

Air Filter - Primary - Short

100942

-

Air Filter - Inner - Short

100943

5

Hose - Air Intake 725G2

424524

6

Grommet

424297

7

Engine Upper Mount - RT

643292

8

Engine Upper Mount - LT

643291

9

Vibration Isolator

424078

10

Engine Lower Mount - RT

643604

11

Engine Lower Mount - LT

643605

12

Coil Bracket

724091

13

Truss Whiz Bolt

253176

14

Whiz Nut

253025

15

Kubota Radiator

101610

16

Radiator Hose - Upper

101054

17

Radiator Hose - Lower

101055

18

Radiator Mount - Upper 725G2

644654

19

Radiator Trim Seal - Upper 19.5

822512

20

Upper Hood - 725G2

644813

21

Front Hood Trim

822639

22

Front Hood Trim

822634

23

Rear Hood Trim 725G2

822503

24

722D Hood Support

644807

25

Hood Rear

644338

26

Spacer

902297

27

Nylon Insert Nut

253440

28

Hex Whiz Bolt

253175

29

Hex Whiz Bolt

253173

30

Hood Side - RT

722762

31

Screw Type Hose Clamp

280303

32

Hex Bolt

271121

33

Air Intake Box Mount 325/725G2

644067

34

Air Intake Box Cover

644071

35

Left Hood Side 321D/325/725G2

644314

36

Electric Fuel Pump

101510

37

Expansion Tank

422012

38

Tie

423154

39

Clear Vent Hose

821748

40

Fuel Line

821749

41

Spring Hose Clamp

280260

42

Radiator Mount - Lower 725G2

644657

43

Grille w/Guard - 725G2

644666

44

Rear Belt Shield Isolator

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

281305

47

Fuel Pump Mount 725/932

724572

48

Flange Whiz Bolt

253192

49

Whiz Nut

253035

50

Flange Whiz Bolt

253203

51

Whiz Nut

253043

52

Lower Seal - 90 degree Bulb 7.0

822509
