Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

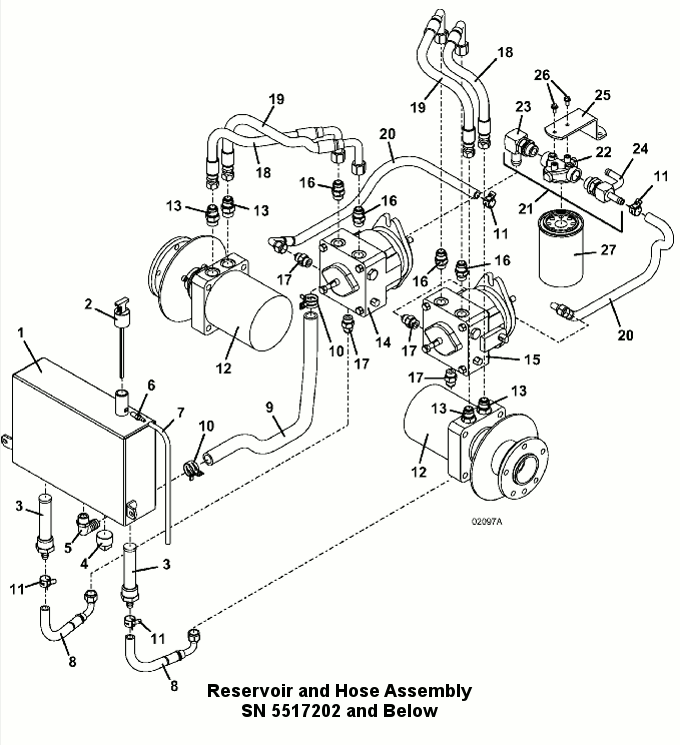

725G2 • Reservoir & Hose Assembly - SN 5517202 & Below

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Reservoir Assembly - 700G2

603703

2

Dipstick - Oil Res. - Plastic

100729

3

Strainer

366556

4

Plug - 1 in. Threaded

365532

5

Fitting - Nylon

363853

6

Fitting - Barb Straight

363826

7

Vent Hose - Clear

821724

8

Hose Assembly

424331

9

.75 Hydraulic Hose

821804

10

Spring Hose Clamp

280268

11

Spring Hose Clamp

280265

12

Wheel Motor w/Hub

603604

13

Adapter Fitting

360069

-

O-Ring

126529

-

O-Ring

126537

14

Hydro Pump - RT

391453

15

Hydro Pump - LT

391452

16

Adapter Fitting

360064

-

O-Ring

126529

-

O-Ring

126535

17

Steel O-Ring Boss Fitting

363832

18

Hose Assembly

424378

19

Hose Assemble

424379

20

Hose Assembly

424343

21

Filter Base Assembly

101020

22

Filter Base

101027

23

Adapter O-Ring 12 Bead

360076

24

Adapter O-Ring w/90 degree Elbow

360074

25

721DG2 Oil Filter Mount

732609

26

Hex Whiz Bolt

253173

27

Transmission Oil Filter

100860
