Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

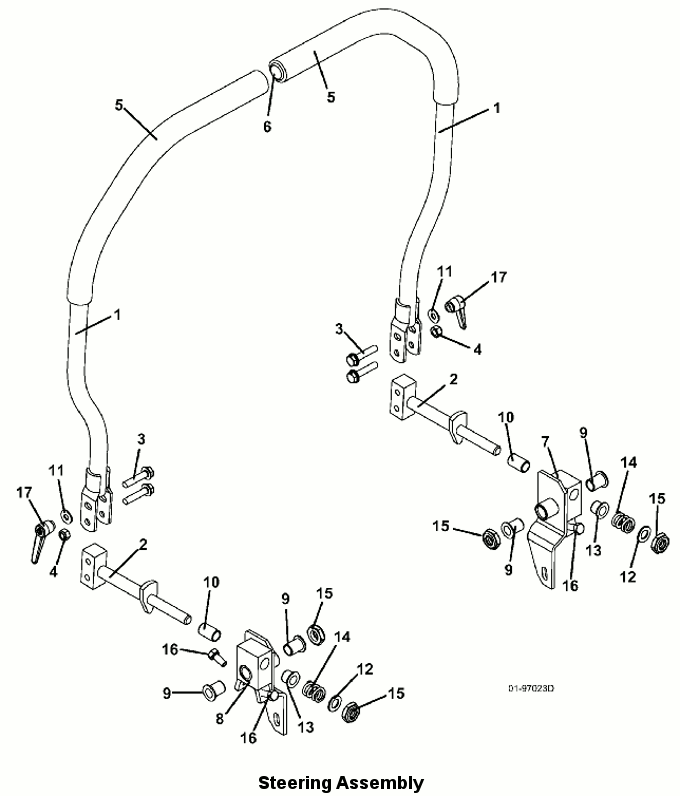

725G2 • Steering Assembly

2005

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever Assembly - Wide STD

604778

2

Adjustable Steering Lever Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Nylon Insert Nut

253450

5

Handle Grip

422179

6

.75 ID Vinyl Cap

422095

7

Steering Pivot with Stop & Bearings - right

604771

8

Steering Pivot with Stop & Bearings - left

604772

9

Sleeve Bearing w/Flange

422559

10

Sleeve Bearing

422557

11

Flat Washer

257019

12

Washer

257063

13

Sleeve Bearing w/Flange

422556

14

Compression Spring

283324

15

Nylon Insert Nut

253470

16

Hex Bolt

243197

17

Adjustable Lever Nut

254438
