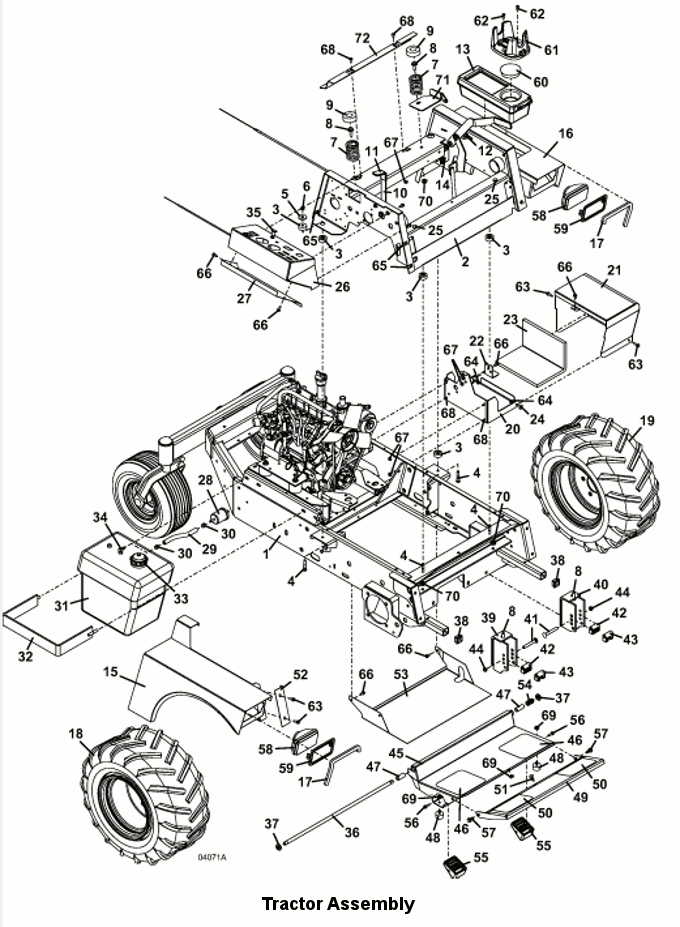

1

Lower Frame 722D

644298

2

Upper Frame G2 2005

643872

3

Step Bushing

257037

4

Hex Bolt

243220

5

Washer

774020

6

Nylon Insert Nut

253450

7

Compression Spring

283516

8

Flange Whiz Bolt

253203

9

Seat Spring Cap

422127

10

Throttle Assembly - 725G2

604822

-

Throttle Control Cable Assembly

323647

11

Handle Grip

422150

12

Spacer

902280

-

Hex Bolt

243335

-

Washer

257040

13

Tool Box

422040

14

Voltage Regulator

185530

15

Fender w/Decal 700/900S right

693210

-

725 Trim Decal -right

163216

16

Fender w/Decal 700/900S left

693211

-

725 Trim Decal -left

163217

17

Fender Edge Trim - 300/700/900

822635

18

Wheel & Bar Tread Tire, 10" - right

483942

-

5 Bolt Wheel Only, 10"

483420

-

Bar Tread Tire Only, 10"

482483

-

Wheel & Turf Tire, 10"

483946

-

Turf Tire Only, 10"

482473

19

Wheel & Bar Tread Tire, 10" - left

483943

-

5 Bolt Wheel Only, 10"

483420

-

Bar Tread Tire Only, 10"

482483

-

Wheel & Turf Tire, 10"

483946

-

Turf Tire Only, 10"

482473

20

Battery Box w/o Draw Latch

644163

21

Battery Box Lid w/o Draw Latch

644478

22

Battery Hold Down Bracket

754135

23

Battery Tray Pad

427278

24

Washer

257020

25

Rubber Bumper

424015

26

Console w/Decal for Liquid-Cooled Gas Engine

693105

27

Fill Panel - 96 Console

721152

28

Kubota Fuel Prefilter

101005

29

Fuel Hose

821713

30

Spring Hose Clamp

280261

31

Fuel Tank Assembly

603817

32

Fuel Tank Mounting Bracket

643144

33

Cap w/Fuel Level

141125

34

Fuel Draw Tube

101818

35

Mechanical Choke

142223

36

Foot Platform Pivot Rod - 700

780673

37

Nylon Insert Nut

253470

38

Square Plastic Plug

422065

39

QD 700/900 Deck Mount - right

643092

40

QD 700/900 Deck Mount - left

643093

41

Special Carriage Bolt

247280

42

Deck Mount Bushing

282575

43

Floating Deck Mount Bushing

282576

44

Nylon Insert Nut

253460

45

Adjustable Foot Platform Assembly - 700/900

604346

46

Foot Rest Tread

420905

47

Nylon Bearing

422615

48

Rubber Bumper

424052

49

Foot Platform Extension - 700

603301

50

Foot Rest Extension Tread

420904

51

Carriage Bolt

247130

52

Fender Cover Panel - right

722062

53

Trash Shield - G2

721383

54

Compression Spring

283312

55

Footrest Isolator Block

424100

56

Hex Bolt

243026

57

Bolt Whiz Hex Flange

253192

58

Flood Worklamp

182253

59

Snap Mount Worklamp Bezel

182251

60

Cup Hole Plug

422066

61

Cup Holder

150225

62

Cap Screw

259030

-

Nut

254436

63

Hex Whiz Bolt

253175

64

Nut - Insert - Nylon

253440

65

Speed Nut

254431

66

Hex Whiz Bolt

253173

67

Whiz Nut

253025

68

Bolt Whiz Truss

253176

69

Whiz Nut

253035

70

Whiz Nut

253043

71

Brake Pin Reinforcement

729230

72

Shield - I Coupler 725G2

722774

73

Decal Set - 725G2 w/Side Console ROP

604253
