Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

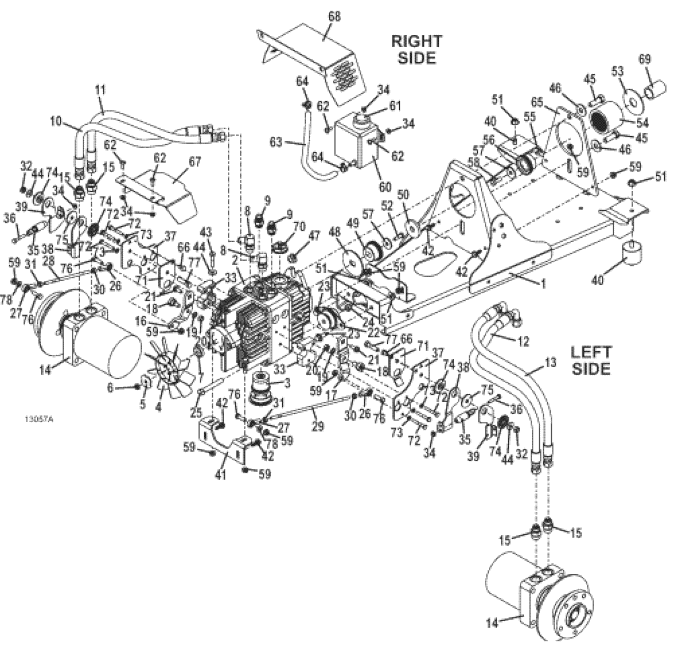

725KT • Drive Assembly

2014

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Drive Train Mount

644875

2

Tandem with Opposed Trunnions

391471

3

Tandem Transmission Filter

130505

4

8.3" T6 Fan

130434

5

Fan Retainer Washer

130432

6

Nylon Insert Nut

253461

7

Fan Hub

130433

8

O-Ring Adapter

360061

9

Adapter Fitting

360064

10

Hose Assembly

424383

11

Hose Assembly

424384

12

Hose Assembly

424385

13

Hose Assembly

424386

14

H2 Wheel Motor with Hub

603611

15

O-Ring Adaptert

360063

16

Right Neutral Return Arm

726162

17

Left Neutral Return Arm

726163

18

Opposed Roller Assembly

603735

19

External Star Washer

257410

20

Nut

254450

21

Flanged Hex Bolt

271021

22

Vibration Isolator Flange

424070

23

Flanged Whiz Bolt

253203

24

Nut with Nylon Insert

253465

25

Hex Bolt

243475

26

Right Female Rod End

265650

27

Left Female Rod End

265651

28

Steering Rod

780150

29

Steering Rod

780171

30

Nut

254441

31

Nut

254444

32

Lock Nut

253890

33

Return Spacer

422049

34

Whiz Nut

253025

35

Extension Spring

283823

36

Hex Bolt

243035

37

Neutral Return Mount

766037

38

Neutral Return Arm

766043

39

Neutral Return Arm

766044

40

Vibration Isolator

424073

41

Front Pump Mount

725522

42

Hex Flanged Whiz Bolt

253192

43

Hex Bolt

243215

44

Washer

257030

45

Hex Bolt

243570

46

Washer

257060

47

Whiz Nut

253066

48

DD Washer

774175

49

Coupler Hub

388577

50

Coupling Stabilizer

424150

51

Whiz Nut

253043

52

Hex Bolt

243206

53

3" (OD) Washer

774176

54

Nylon Coupler Sleeve

388560

55

Square Key

281580

56

Coupler Hub

388578

57

Washer

774020

58

Hex Bolt

243330

59

Whiz Nut

253035

60

Oil Expansion Tank

421981

61

Vented Cap W/ Gasket

421991

62

Phillips Head Truss Whiz Bolt

253179

63

Hydro Espansion Hose

821709

64

Spring Hose Clamp

280261

65

Tandem Pump Mount Spacer

775123

66

Hex Bolt

243186

67

700T Fan Shroud

722976

68

700T Coupler Shield with Decal

693784

69

Spacer

902548

70

T2 Expansion Tank Adapter

130510

71

Adjustment Plate

766038

72

Hex Bolt

243038

73

Lock Washer

257392

74

Neutral Return Pivot Bearing

822304

75

Washer

774292

76

Hex Bolt

243205

77

Hex Bolt

243340

78

Washer

257032
