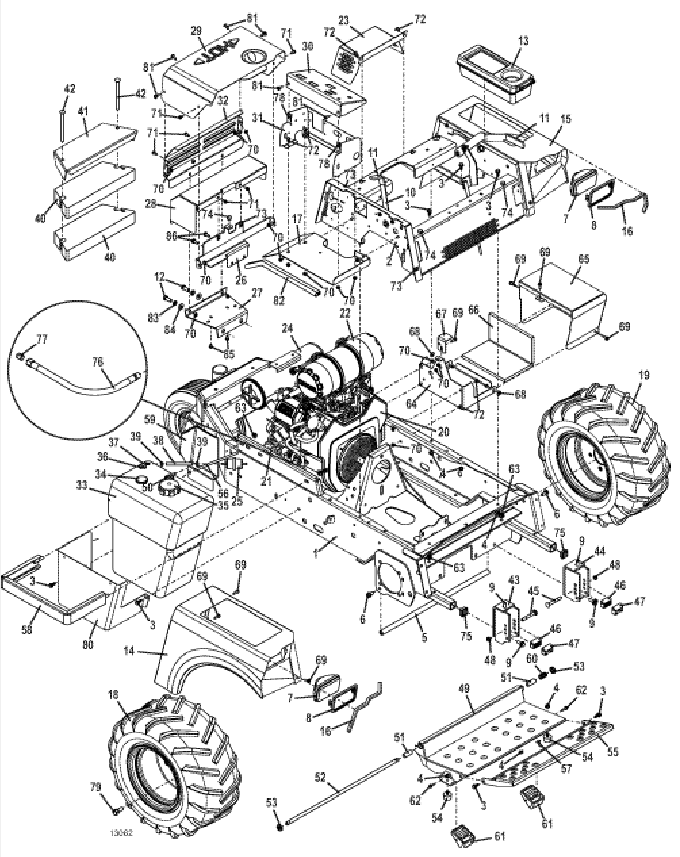

727EFI • Tractor Assembly

2014

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700T Lower Frame- Air Cooled models

644873

2

700 Upper Frame

645214

3

Hex Flange Whiz Bolt

253192

4

Whiz Nut

253035

5

Tension Rod

780900

6

Whiz Bolt

253200

7

Flood Worklamp

182253

8

Snap Mount Worklamp Bezel

182251

9

Flange Whiz Bolt

253203

10

Throttle Assembly

603821

-

Control Cable Assembly

323655

-

Throttle Lever Stop

722009

11

Handle Grip

422150

12

Hex Bolt

243445

13

Tool Box

422040

14

Right 700/900 Fender with Safety Decal

693220

15

Left 700/900 Fender with Safety Decal

693221

16

700/900 Fender Edge Trim

822635

17

Console Mount

645051

18

Right Wheel & Bar Tread Tire, 22 x 11 x 10

483942

19

Left Wheel & Bar Tread Tire, 22 x 11 x 10

483943

-

Turf Tire Only, 22 x 10 x 10

482473

-

OTR Turf Tire 22 x 10 x 10

482477

-

Bar Tread Tire Only, 22 x 11 x 10

482483

-

5 Bolt Wheel Only, 10 x 8.5

483420

-

Wheel & Turf Tire, 22 x 10 x 10

483946

20

27 HP Kohler EFI FM Engine

100080

-

Kohler Engine Shim

900117

21

Kohler Oil Filter

100802

22

HD Air Filter Outer

100936

-

HD Air Filter Inner

100937

23

700T Coupler Shield with Decal

693784

24

Kohler EFI Muffler

101215

-

Kohler Exhaust Gasket

101041

25

Kohler Fuel Filter

101001

26

Shield Mount Bracket Assembly (includes item #73)

605126

27

Lower Muffler Bracket

729270

28

Inner Panel W/A

645191

29

Hood Panel

751300

30

Console with Decal

693113

31

Console Frame

722875

32

Grille Panel

751125

33

Front Mount 8 Gallon Gas Tank Assembly(includes items 34 & 37, and 50)

605795

34

In-Tank Fuel Gauge

141144

-

Grommet

424275

35

Internal Sealed Tether Fuel Cap

100212

36

Fuel Tube Bushing

101875

37

Fuel Tube

363928

38

Fuel Hose

821711

39

Spring Hose Clamp

280260

40

34 lb. Counterweight

323933

41

34 lb. Weight Cover

729514

42

Carriage Bolt

247325

43

700/900 right Quick Disconnect Deck Mount

643092

44

700/900 left Quick Disconnect Deck Mount

643093

45

Special Carriage Bolt

247280

46

Deck Mount Bushing

282575

47

Floating Deck Mount Bushing

282576

48

Nylon Insert Nut

253460

49

Adjustable Foot Platform Assembly - 700/900

604346

50

Fuel Tank Valve Kit

606830

51

Nylon Bearing

422615

52

Foot Platform Pivot Rod - 700

780673

53

Nylon Insert Nut

253470

54

Rubber Bumper

424052

55

700 Foot Platform Extension

643304

56

Fuel Vapor Hose

821757

57

Carriage Bolt

247130

58

8 Gallon Fuel Tank Mount Bracket

644826

59

8 Gallon Fuel Tank Heat Shield

721181

60

Compression Spring

283312

61

Footrest Isolator Block

424100

62

Hex Bolt

243026

63

Whiz Nut

253043

64

Battery Box W/O Draw Latch

644163

65

Battery Box Lid W/O Draw Latch

644478

66

Battery Tray Pad

427278

67

Battery Hold Down Bracket

754135

68

Washer

257020

-

Nylon Insert Nut

253440

69

Hex Whiz Bolt

253175

70

Whiz Nut

253025

71

Hex Whiz Bolt

253173

72

Truss Whiz Bolt

253176

73

Speed Nut

254431

74

Rubber Bumper

424015

75

Square Plastic Plug

422065

76

Engine Oil Drain Hose Assembly

424474

77

Metal Pipe Plug

365515

78

Plastic Retainer Nut

254432

79

Lug Bolt

248565

80

8 Gallon Tank Shield

723339

81

Philips Truss Whiz Bolt

253179

82

Console Mount Seal

822501

83

Lock Washer

257422

84

Washer

257040

85

Hex Bolt

270821

86

Flanged Hex Bolt with Ser

271021

87

727EFI Decal Set

605552
