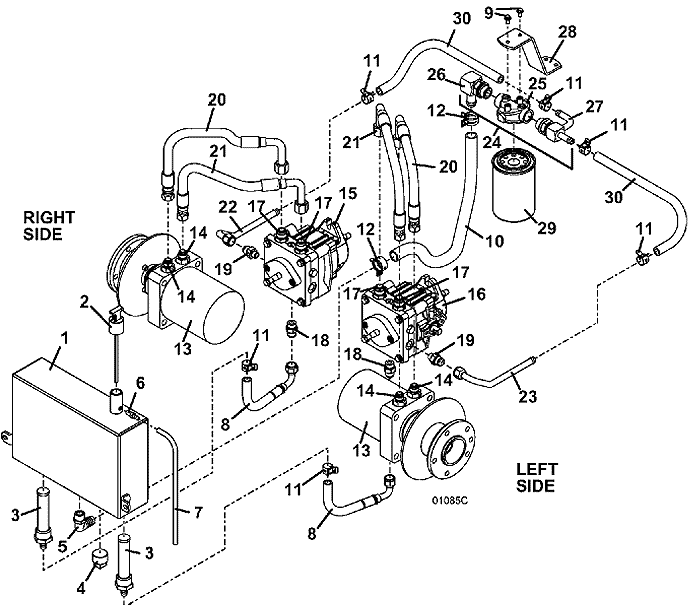

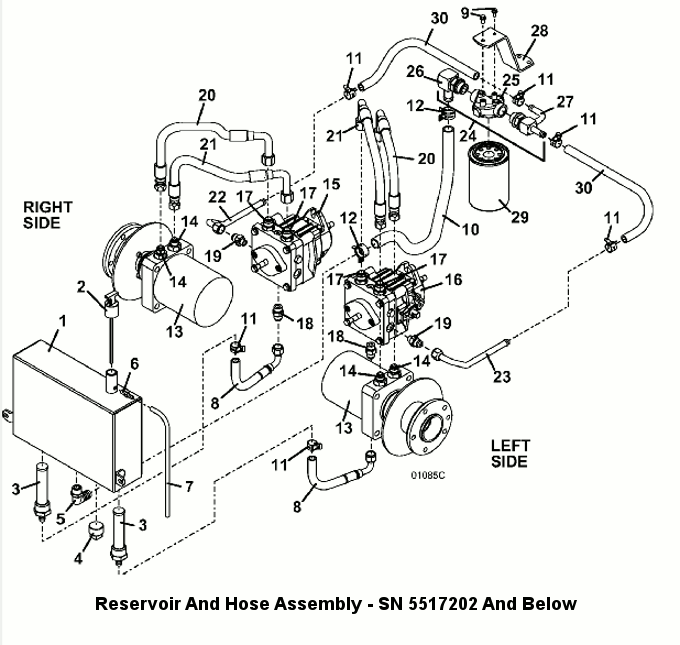

Item # |
Description |
Part Number |
1 |
700G2 Reservoir Assembly |
603703 |
2 |
Plastic Dipstick for Oil Reservoir |
100729 |
3 |
Strainer |
366556 |
4 |
1 inch Threaded Plug |
365535 |
5 |
Nylon Fitting |
363853 |
6 |
Barbed Straight Fitting |
363826 |
7 |
Clear Vent Hose |
821724 |
8 |
Hose Assembly |
424331 |
9 |
Hex Whiz Bolt |
253173 |
10 |
.75 Hydraulic Hose |
821804 |
11 |
Spring Hose Clamp |
280265 |
12 |
Spring Hose Clamp |
280268 |
13 |
Wheel Motor with Hub |
603602 |
14 |
O-Ring Adapter |
360063 |
- |
O-Ring |
126527 |
- |
O-Ring |
126537 |
15 |
Hydro Pump - right |
391463 |
- |
Seal |
125165 |
- |
Square Charge Cover Seal Ring |
130020 |
16 |
Hydro Pump - left |
391462 |
- |
Seal |
125165 |
- |
Square Charge Cover Seal Ring |
130020 |
17 |
Fitting Adapter |
360064 |
- |
O-Ring |
126529 |
- |
O-Ring |
126535 |
18 |
Steel O-Ring Boss Fitting |
363832 |
19 |
Fitting Adapter |
360081 |
20 |
Hose Assembly |
424371 |
21 |
Hose Assembly |
424372 |
22 |
Tube Assembly |
424602 |
23 |
Tube Assembly |
424603 |
24 |
Filter Base Assembly G2 |
101020 |
25 |
Filter Base |
101027 |
26 |
12 Bead O-Ring Adapter |
360076 |
27 |
O-Ring Adapter with 90 degree Elbow |
360074 |
28 |
Oil Filter Base |
733124 |
29 |
Transmission Oil Filter |
100860 |
30 |
Hydraulic Hose |
821799 |
