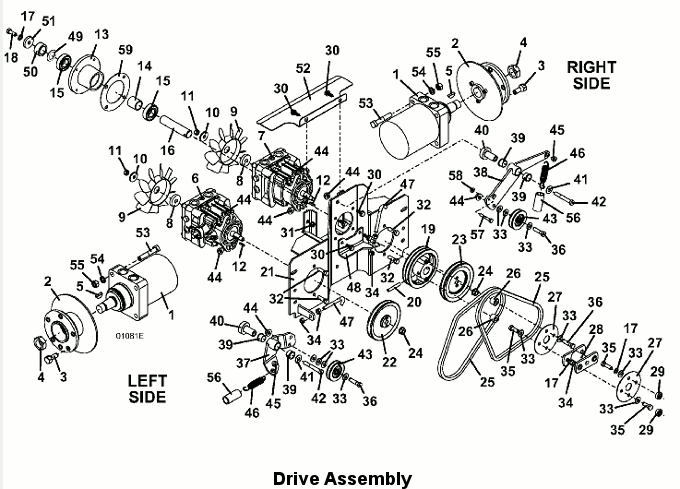

Item # |
Description |
Part Number |
1 |
Wheel Motor with Hub |
603602 |
2 |
Bolt-On Rotor Wheel Hub |
604440 |
- |
8.0 Brake Rotor |
775192 |
- |
Socket Head Screw |
259592 |
3 |
Lug Bolt |
248565 |
4 |
Nut |
254522 |
5 |
Woodruff Key |
281860 |
6 |
Hydro Pump- left |
391462 |
- |
Seal |
125165 |
- |
Square Charge Cover Seal Ring |
130020 |
7 |
Hydro Pump- right |
391463 |
- |
Seal |
125165 |
- |
Square Charge Cover Seal Ring |
130020 |
8 |
10A Fan Mount Hub |
885123 |
9 |
CW 7” Nylon Fan |
320857 |
10 |
Washer |
774020 |
11 |
Nut |
254452 |
12 |
Rectangle Key |
281562 |
13 |
Vac Fan Spindle Housing |
320522 |
14 |
Drive Bearing Spacer |
903650 |
15 |
2 Reg Seal 25mm Ball Bearing |
110081 |
16 |
700G2 Drive Shaft |
882052 |
17 |
Lock Washer |
257412 |
18 |
Hex Bolt |
243331 |
19 |
Sheave |
415037 |
20 |
Roll Pin |
261061 |
21 |
16AG2 Pump Mount |
644629 |
22 |
Sheave |
415022 |
23 |
Sheave |
415021 |
24 |
Flange Nut |
253061 |
25 |
Belt |
381537 |
26 |
G2 Drive Spacer |
902328 |
27 |
Flex Coupling Disc |
821530 |
28 |
Coupling Connector |
644092 |
29 |
Coupling Spacer |
902318 |
30 |
Hex Whiz Flange Bolt |
253192 |
31 |
Whiz Nut |
253035 |
32 |
Hex Bolt |
243335 |
33 |
Washer |
257030 |
34 |
Nut |
254450 |
35 |
Bolt |
243330 |
36 |
Bolt |
243340 |
37 |
Idler Arm Assembly |
824491 |
38 |
Idler Arm Assembly |
604450 |
39 |
Oilite Bearing |
121756 |
40 |
Pedestal Bearing |
121650 |
41 |
Washer |
257040 |
42 |
Hex Bolt |
243360 |
43 |
Idler |
604449 |
44 |
Whiz Nut |
253043 |
45 |
Nylon Bearing |
422520 |
46 |
Extension Spring with Swivel |
283819 |
47 |
Idler Adjustment J Bolt |
730391 |
48 |
928 Spring Bracket |
725028 |
49 |
Washer |
257106 |
50 |
Spacer |
282630 |
51 |
Washer |
883801 |
52 |
G2 Fan Shield |
723154 |
53 |
Square Head Bolt |
243595 |
54 |
Lock Washer |
257432 |
55 |
Nut |
254470 |
56 |
Tubing - Clear |
822684 |
57 |
Hex Bolt |
243038 |
58 |
Nut Whiz |
253025 |
59 |
Shim - Drive Spindle |
900211 |
