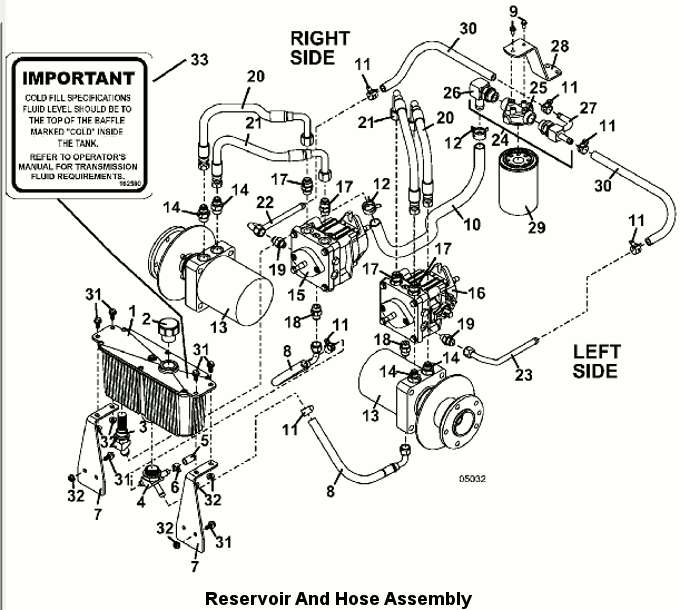

Item # |
Description |
Part Number |
1 |
Tank Assembly - Oil G2 |
101690 |
2 |
Fill Cap |
100760 |
3 |
Fitting - w/Diffuser |
366571 |
4 |
Fitting - Triple Barb |
366570 |
5 |
Cap - Manifold Fitting |
422102 |
6 |
Clamp - Hose Spring |
280263 |
7 |
Mount - Aluminum Oil Tank - RT |
755128 |
8 |
Hose Assembly |
424349 |
9 |
Hex Whiz Bolt |
253173 |
10 |
.75 Hydraulic Hose |
821804 |
11 |
Clamp - Hose Spring |
280266 |
12 |
Spring Hose Clamp |
280268 |
13 |
Wheel Motor with Hub |
603602 |
14 |
O-Ring Adapter |
360063 |
- |
O-Ring |
126527 |
- |
O-Ring |
126537 |
15 |
Hydro Pump - right |
391463 |
- |
Seal |
125165 |
- |
Square Charge Cover Seal Ring |
130020 |
16 |
Hydro Pump - left |
391462 |
- |
Seal |
125165 |
- |
Square Charge Cover Seal Ring |
130020 |
17 |
Fitting Adapter |
360064 |
- |
O-Ring |
126529 |
- |
O-Ring |
126535 |
18 |
Steel O-Ring Boss Fitting |
363832 |
19 |
Fitting Adapter |
360081 |
20 |
Hose Assembly |
424371 |
21 |
Hose Assembly |
424372 |
22 |
Tube Assembly |
424602 |
23 |
Tube Assembly |
424603 |
24 |
Filter Base Assembly G2 |
101020 |
25 |
Filter Base |
101027 |
26 |
12 Bead O-Ring Adapter |
360076 |
27 |
O-Ring Adapter with 90 degree Elbow |
360074 |
28 |
Oil Filter Base |
733124 |
29 |
Transmission Oil Filter |
100860 |
30 |
Hydraulic Hose |
821799 |
31 |
Bolt Whiz Hex Flange |
253192 |
32 |
Nut - Whiz |
253035 |
33 |
Decal - Important Oil Spec |
162580 |
