Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

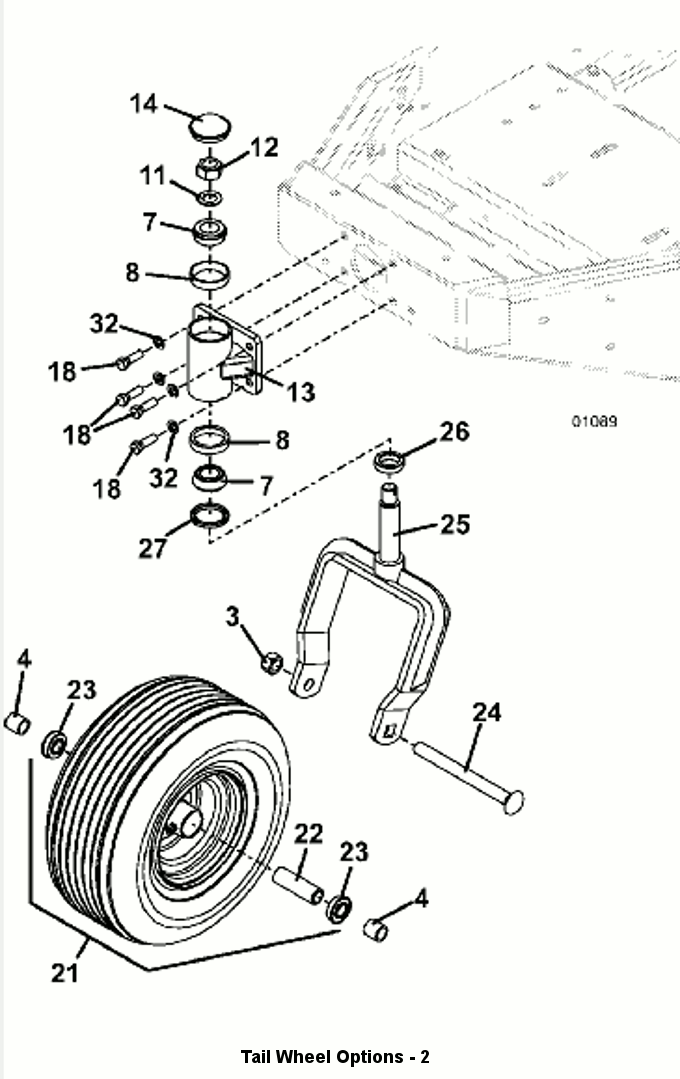

727K2 • Tail Wheel Options - 2

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

3

Lock Nut

253970

4

Axle Spacer

902425

7

Taper Bearing

122522

8

Bearing Cup

123522

11

14 ga Bushing Washer

257091

12

Lock Nut

253992

13

RR Fork Pivot Housing

604596

14

Domed Dust Cap

481434

18

GR8 Hex Bolt

243334

21

Wheel & Tire w/Bearing & Spacer

483865

22

Rear Wheel Bearing Spacer

902475

23

Ball Bearing

120050

24

Carriage Bolt

247725

25

Fork & Lock Nut Assembly

604365

26

Spacer

282615

27

Seal

125855

32

Lock Washer

257412
