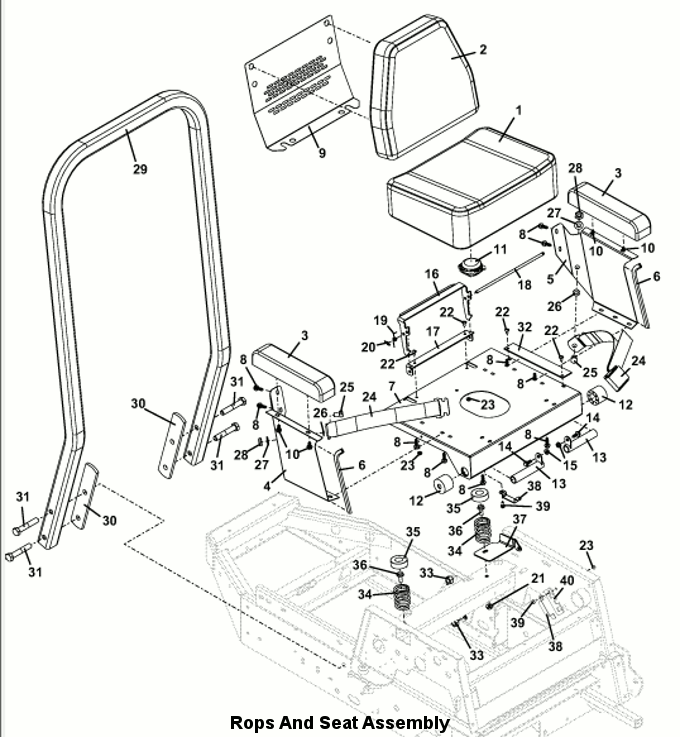

Item # |
Description |
Part Number |
1 |
Seat Cushion - Cordura |
321518 |
2 |
Back Cushion - Cordura |
321519 |
3 |
Contoured Armrest - Cordura |
321523 |
4 |
Extended Armrest Seat Side Member - right |
723386 |
5 |
Extended Armrest Seat Side Member - left |
723387 |
6 |
Seat Edge Trim |
822630 |
7 |
Seat Mount - Dual Latch |
644816 |
8 |
Hex Flange Whiz Bolt |
253193 |
9 |
Seat Reinforcement Panel |
722388 |
10 |
Hex Flange Whiz Bolt |
253191 |
11 |
Seat Switch - Twist In |
183871 |
12 |
Seat Isolator |
424095 |
13 |
Seat Hinge Pin |
644618 |
14 |
Hex Flange Whiz Bolt |
253192 |
15 |
Whiz Nut |
253035 |
16 |
Dual Latch - Seat |
754240 |
17 |
Bracket - Dual Latch Mount |
254226 |
18 |
Pivot Pin - Seat Latch |
730230 |
19 |
Torsion Spring |
284408 |
20 |
Cotter Ring |
260606 |
21 |
Nut Whiz |
253043 |
22 |
Bolt Whiz Truss |
253176 |
23 |
Nut Whiz |
253025 |
24 |
Seat Belt - Non Retract |
324200 |
25 |
Hex Bolt |
243551 |
26 |
Washer |
257063 |
27 |
Washer |
257062 |
28 |
Nut - Insert - Nylon |
253470 |
29 |
Tube - ROPS - 700/900 |
324103 |
30 |
Spacer - ROPS - 700/900 |
901645 |
31 |
Hex Bolt |
243840 |
32 |
Flap - Seat Paner - 700/900 |
424176 |
33 |
Nut - Lock |
253970 |
34 |
Spring - Compression |
283516 |
35 |
Cap - Seat Spring |
422127 |
36 |
Bolt Whiz Flange |
253203 |
37 |
Brake Pin Reinforcement |
729230 |
38 |
Clamp - Wiring Mount Bracket |
722776 |
39 |
Bolt Whiz Hex |
253173 |
40 |
Wiring Mount Bracket |
774046 |
