Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

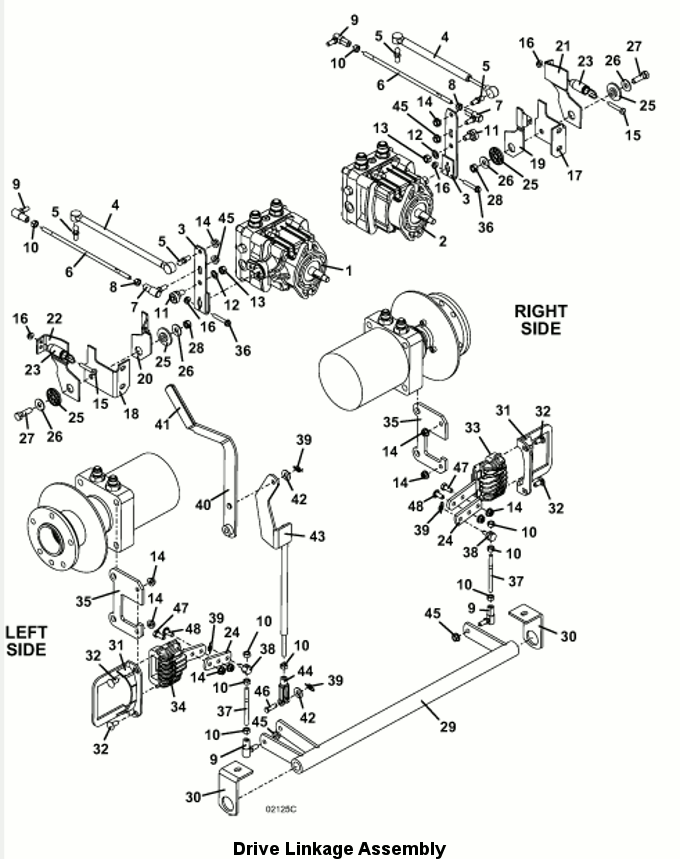

727K2 • Drive Linkage Assembly

2008

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydro Pump- left

391462

-

Seal

125165

-

Charge Cover Square Seal Ring

130020

2

Hydro Pump- right

391463

-

Seal

125165

-

Charge Cover Square Seal Ring

130020

3

Pump Control Arm - right

725338

4

Damper

285031

5

Ball Stud

265680

6

Steering Linkage Pump Rod

780164

7

Ball Joint - Lefthand Thread

265616

8

Nut

254444

9

Ball Joint - Righthand Thread

265615

10

Nut .312-24

254441

11

Eccentric Roller Assembly

603726

12

Washer

257410

13

Nut .375-16

254450

14

Whiz Nut

253035

15

Hex Bolt .250-20 x 1.500

243035

16

Whiz Nut .250-20

253025

17

Neutral Return Mount - RT

754120

18

Neutral Return Mount - LT

754121

19

Neutral Return Arm - M1 RT

729138

20

Neutral Return Arm - M1 LT

729139

21

Neutral Return Front Arm - RT

729136

22

Neutral Return Front Arm- LT

729137

23

Extension Spring

283823

24

Brake Strap - 700 Series

782851

25

Neutral Return Pivot Bearing

822304

26

Washer

257040

27

Hex Bolt .375-16 x 1.25

243335

28

Lock Nut .375-16

253890

29

Linkage Rod

644539

30

Brake Pivot Mount - 1.281

732616

31

Caliper Mount

644121

32

Carriage Bolt .312 x .75

247130

33

Clockwise Caliper Brake Assembly

481102

-

Brake Pad Kit

603150

34

Counter-Clockwise Caliper Brake Assembly

481103

-

Brake Pad Kit

603150

35

Brake Mount - 7.75 Rotor

776174

36

Hex Whiz Bolt

253182

37

Brake Linkage Rod

780158

38

.312 Brake Linkage Pin

880926

39

Cotter Ring

260606

40

700/900 Brake Lever

644035

41

Handle Grip

422150

42

Washer

257030

43

Brake Linkage Arm

644036

44

Clevis Yoke

265537

45

Whiz Nut .312-24

253038

46

Clevis Pin

261284

47

Hex bolt .312-18 x .750

243195

48

Bolt Whiz Truss

253190
